| # | Part Number | Description | Qty | Status |
|---|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| - |
879809A08 |
LONG BLOCK ASSEMBLY
|
1 |
|
| 1 |
878109T1 |

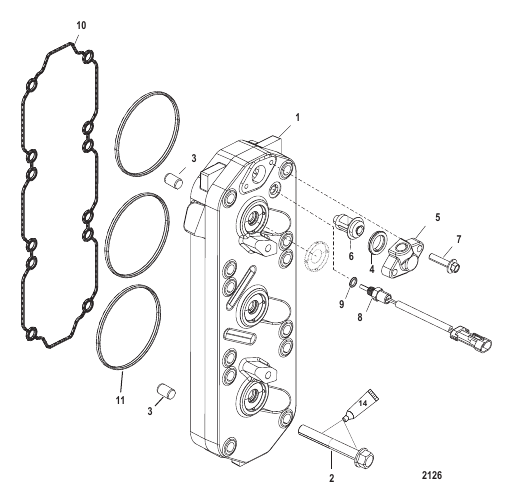

CYLINDER HEAD ASSEMBLY (Port)
|
1 |
|
| 1 |
878110T1 |
CYLINDER HEAD ASSEMBLY (Starboard)
|
1 |
|
| 10 |
8584521 |
SEAL
|
2 |
superseded
|
| 11 |
8597721 |
SEAL
|
6 |
|
| 2 |
878217 |
SCREW (.375-16 x 2.750)
|
24 |
superseded
|
| 3 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 4 |
62386001 |
GASKET
|
2 |
superseded
|
| 5 |
8307372 |
COVER
|
2 |
superseded
|
| 6 |
833072003 |
THERMOSTAT 62°C (143°F)
|
2 |
|
| 7 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 8 |
885342002 |
SENSOR ASSEMBLY
|
2 |
superseded
|
| 9 |
896699 |
O-RING (1.78 mm x .08 mm)
|
2 |
|
