Parts Catalog

Replacements

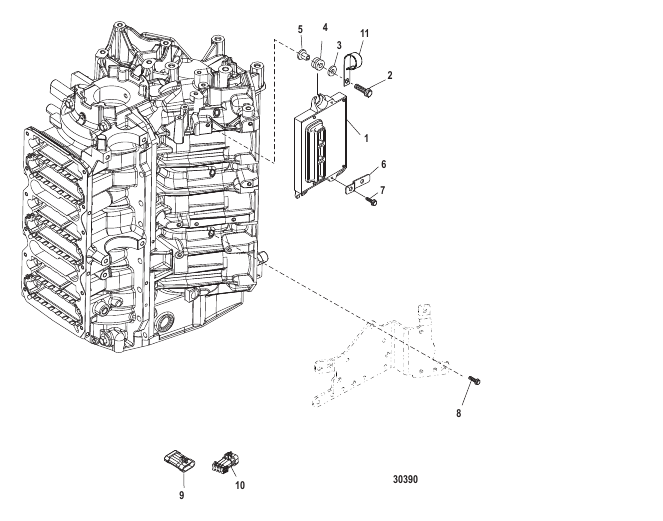

PCM Mounting

Parts (12)

#Part NumberDescriptionQtyStatus
1 89790639T PCM Propulsion Control Module [1B934544] & Below 1
1 8M0073376 PCM Propulsion Control Module [1B934545] & Up 1
10 877613A02 CONNECTOR ASSEMBLY Weather Cap 6 Pin 1
11 65292 J CLIP 1 superseded
2 82130025 SCREW (M6 x 25) 3
3 65567 WASHER (.265 x .750 x .048) Stainless Steel 3
4 834985 GROMMET 3 superseded
5 856954 BUSHING 3
6 858953 BRACKET 2
7 82129114 SCREW (M6 x 14) 2
8 82130012 SCREW (M6 x 12) 3
9 830796A04 CONNECTOR ASSEMBLY Weather Cap - 4 Position Male 1
