| # | Part Number | Description | Qty | Status |
|---|
| 1 |
89790612T |

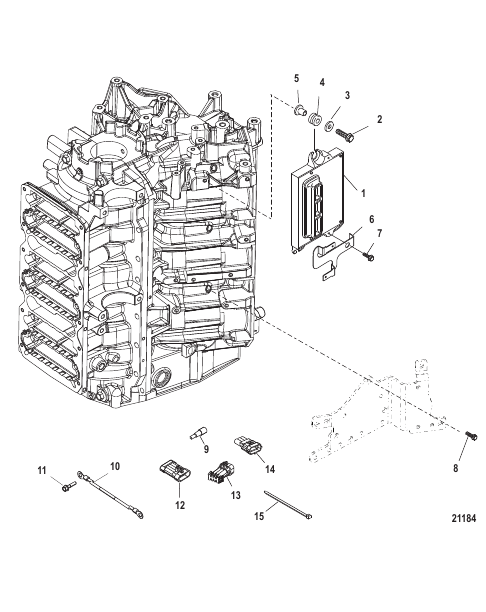

PCM Propulsion Control Module
|
1 |
superseded
|
| 10 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 11 |
81893420 |
SCREW (M8 x 20)
|
1 |
|
| 12 |
830796A04 |
CONNECTOR ASSEMBLY Weather Cap - 4 Position Male
|
1 |
|
| 13 |
877613A02 |
CONNECTOR ASSEMBLY Weather Cap 6 Pin
|
1 |
|
| 14 |
881176A1 |
CAP ASSEMBLY 3 Position-Male Connector
|
1 |
|
| 15 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 2 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 3 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 4 |
834985 |
GROMMET
|
3 |
superseded
|
| 5 |
856954 |
BUSHING
|
3 |
|
| 6 |
891520001 |
CLIP
|
1 |
|
| 7 |
82129114 |
SCREW (M6 x 14)
|
1 |
|
| 8 |
82130012 |
SCREW (M6 x 12)
|
4 |
|
| 9 |
13541 |
PLUG Male
|
1 |
|
