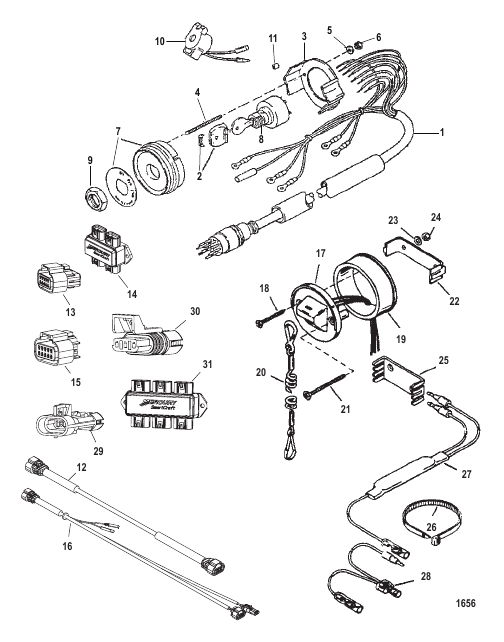

| # | Part Number | Description | Qty | Status |
|---|
| - |
894911 |
KEY Ignition (1A)
|
1 |
|
| - |
894912 |
KEY Ignition (1B)
|
1 |
|
| - |
894913 |
KEY Ignition (1C)
|
1 |
|
| - |
894914 |
KEY Ignition (1D)
|
1 |
|
| - |
894915 |
KEY Ignition (1E)
|
1 |
|
| - |
894916 |
KEY Ignition (1F)
|
1 |
|
| - |
894917 |
KEY Ignition (2A)
|
1 |
|
| - |
894918 |
KEY Ignition (2B)
|
1 |
|
| - |
894919 |
KEY Ignition (2C)
|
1 |
|
| - |
8949110 |
KEY Ignition (2D)
|
1 |
|
| - |
8949111 |
KEY Ignition (2E)
|
1 |
|
| - |
8949112 |
KEY Ignition (2F)
|
1 |
|
| - |
879968T10 |
HARNESS ASSEMBLY (SC1000-10)
|
1 |
|
| - |
879896K11 |
SYSTEM MONITOR KIT SC1000 - Front Mount
|
1 |
superseded
|
| 1 |
816626A20 |
HARNESS ASSEMBLY Key Switch (20.00 Feet)
|
1 |
|
| 10 |
816492A2 |
ALARM
|
1 |
superseded
|
| 11 |
8127111 |
SPACER (.375)
|
2 |
|
| 11 |
812711 |
SPACER (.250)
|
2 |
|
| 12 |
879981T20 |
HARNESS ASSEMBLY (SC1000R-20)
|
1 |
|
| 13 |
859318T1 |
TERMINATOR 10 Pin (CAN 1 and 2)
|
1 |
superseded
|
| 14 |
878492T14 |
JUNCTION BOX 4 Way
|
1 |
disc.
|
| 15 |
859318T2 |
CAP Weather - 10 Pin
|
1 |
|
| 16 |
879979T1 |
HARNESS ASSEMBLY Tachometer (SC1000-3)
|
1 |
superseded
|
| 17 |
19674A1 |
SWITCH ASSEMBLY Lanyard
|
1 |
disc.
|
| 18 |
18303 |
SCREW (.190-16 x 1.750) Stainless Steel
|
2 |
|
| 19 |
813679 |
ADAPTER
|
1 |
|
| 2 |
90468A1 |
COVER ASSEMBLY Key
|
2 |
|
| 20 |
15920Q54 |
LANYARD ASSEMBLY
|
1 |
disc.
|
| 21 |
32866 |
SCREW (#10-32 x 2.00) Stainless Steel
|
2 |
|
| 22 |
18321 |
CLAMP Mounting
|
1 |
|
| 23 |
24676 |
WASHER (.200 x .440 x .032)
|
2 |
|
| 24 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 25 |
79146 |
RETAINER
|
3 |
|
| 26 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 27 |
812497A2 |
DIODE ASSEMBLY
|
1 |
disc.
|
| 28 |
11149A2 |
CABLE ASSEMBLY (6.00 Inches)
|
1 |
|
| 29 |
881176A1 |
CAP ASSEMBLY 3 Position-Male Connector
|
1 |
|
| 3 |
76424 |
BRACKET
|
1 |
|
| 30 |
881175A1 |
CAP ASSEMBLY 3 Position-Female Connector
|
1 |
|
| 31 |
878492T16 |
JUNCTION BOX 6 Way
|
1 |
disc.
|
| 4 |
55422 |
STUD (#10-32 x 2.00)
|
2 |
|
| 5 |
24676 |
WASHER (.200 x .440 x .032)
|
2 |
|
| 6 |
68219 |
NUT (#10-32) Stainless Steel
|
2 |
|
| 7 |
816479A3 |
PLATE KIT
|
2 |
|
| 8 |
88107A5 |
SWITCH KIT Key
|
1 |
|
| 9 |
879755 |
NUT Special - Black Nylon
|
1 |
|
