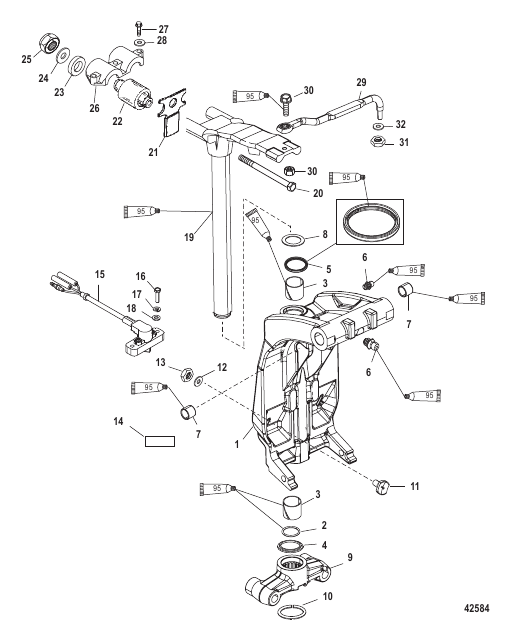

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8710T20 |
SWIVEL BRACKET ASSEMBLY Black
|
1 |
superseded
|
| 10 |
67684 |
RING Retaining
|
1 |
|
| 11 |
996301 |
STRIKER PLATE
|
2 |
superseded
|
| 12 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 13 |
46335 |
NUT (.375-24)
|
2 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Decal-Serail Overlaminate
|
1 |
|
| 15 |
859187A1 |
SENDER ASSEMBLY Trim
|
1 |
|
| 16 |
852368 |
SCREW (#10-24 x .750)
|
2 |
|
| 17 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
| 18 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 19 |
826432A2 |
SWIVEL PIN ASSEMBLY Steering Arm - Stainless Steel
|
1 |
superseded
|
| 2 |
33504 |
O-RING
|
1 |
superseded
|
| 20 |
8M0000517 |
SCREW (M12 x 190)
|
2 |
superseded
|
| 21 |
824998001 |
BUMPER
|
1 |
|
| 22 |
8163851 |
MOUNT Upper
|
2 |
|
| 23 |
8154371 |
WASHER
|
2 |
|
| 24 |
815436 |
WASHER
|
2 |
|
| 25 |
896963 |
NUT (M12)
|
2 |
|
| 26 |
813769 |
CLAMP
|
1 |
superseded
|
| 27 |
8M0033179 |
SCREW (M8 x 40)
|
3 |
superseded
|
| 28 |
847541 |
WASHER
|
3 |
|
| 29 |
92876A12 |
LINK ROD ASSEMBLY
|
1 |
|
| 3 |
818764 |
BUSHING
|
2 |
|
| 30 |
849838 |
SCREW (.375-24 x 1.250)
|
1 |
|
| 31 |
826709113 |
NUT (.375-24) Stainless Steel
|
2 |
superseded
|
| 32 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 4 |
816039 |
SPACER
|
1 |
|
| 5 |
87735 |
SEAL Oil (Lower)
|
1 |
|
| 6 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 7 |
821207 |
BUSHING
|
2 |
|
| 8 |
816432 |
THRUST WASHER
|
1 |
|
| 9 |
826364T |
YOKE Bottom
|
1 |
|
