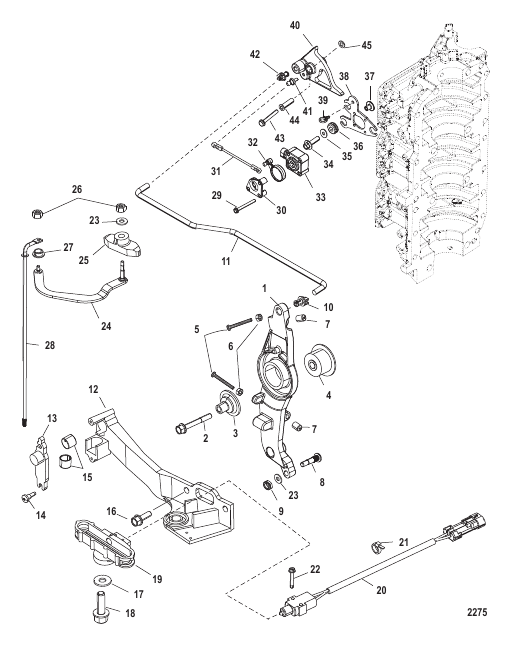

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8252682 |
LEVER
|
1 |
superseded
|
| 10 |
932481 |
BUSHING
|
1 |
superseded
|
| 11 |
884834 |
LINK
|
1 |
disc.
|
| 12 |
8240102 |
BRACKET Anchor
|
1 |
superseded
|
| 13 |
824016 |
LATCH
|
1 |
|
| 14 |
42975 |
DRIVE SCREW
|
2 |
|
| 15 |
824015 |
CUP Barrel Retainer
|
2 |
|
| 16 |
82155025 |
SCREW (M8 x 25 MM) Stainless Steel
|
2 |
|
| 17 |
43430 |
WASHER
|
1 |
|
| 18 |
82155025 |
SCREW (M8 x 25 MM) Stainless Steel
|
1 |
|
| 19 |
896662 |
BRACKET Slide
|
1 |
superseded
|
| 2 |
81893460 |
SCREW (M8 x 60)
|
1 |
|
| 20 |
889514A01 |
SWITCH
|
1 |
superseded
|
| 21 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 22 |
82470620 |
SCREW (M3.5 x 20)
|
2 |
|
| 23 |
35459 |
WASHER
|
2 |
|
| 24 |
883142A03 |
SHIFT LINK KIT
|
1 |
|
| 25 |
8539683 |
SLIDE
|
1 |
|
| 26 |
401386 |
NUT (M6) Stainless Steel
|
2 |
|
| 27 |
42994 |
BUSHING
|
1 |
|
| 28 |
896669002 |
SHIFT SHAFT Upper (X-Long)
|
1 |
superseded
|
| 28 |
8240703 |
SHIFT SHAFT Upper (XX-Long)
|
1 |
|
| 29 |
40011113 |
SCREW (M5 x 45) Stainless Steel
|
3 |
|
| 3 |
887605 |
BUSHING
|
1 |
|
| 30 |
8582261 |
COVER
|
1 |
|
| 31 |
8M0008111 |
LINK
|
1 |
|
| 32 |
883081 |
LEVER
|
1 |
|
| 33 |
83295211 |
INDICATOR Throttle Position
|
1 |
superseded
|
| 34 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 35 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 36 |
834985 |
GROMMET
|
3 |
superseded
|
| 37 |
856954 |
BUSHING
|
3 |
|
| 38 |
8544862 |
BRACKET
|
1 |
|
| 39 |
858932 |
CLIP
|
1 |
|
| 4 |
821113 |
BUSHING
|
1 |
|
| 40 |
858353A07 |
CAM ASSEMBLY Throttle
|
1 |
disc.
|
| 41 |
8235694 |
BALL Threaded
|
1 |
|
| 42 |
932481 |
BUSHING
|
1 |
superseded
|
| 43 |
40011155 |
SCREW (M8 x 55) Stainless Steel
|
1 |
|
| 44 |
8807371 |
BUSHING
|
1 |
|
| 45 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
1 |
|
| 5 |
40124 |
SCREW (M6 x 55)
|
2 |
|
| 6 |
400212 |
NUT (M6) Stainless Steel
|
2 |
|
| 7 |
42942 |
CAP
|
2 |
|
| 8 |
42927 |
INSERT
|
1 |
|
| 9 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
