| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |

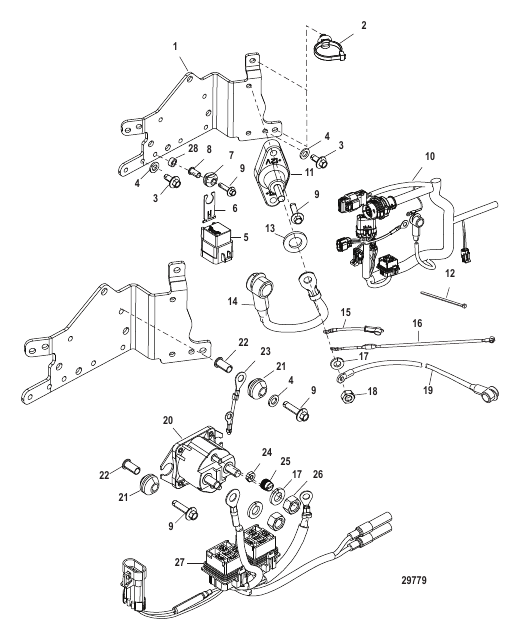

NOT SOLD SEPARATE Electrical Plate Assembly-Complete
|
1 |
|
| - |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
5 |
superseded
|
| - |
8329692 |
FUSE Mini - Gray - 2 Ampere
|
1 |
superseded
|
| - |
8329695 |
FUSE Mini - Tan - 5 Ampere
|
1 |
superseded
|
| - |
858781A2 |
HARNESS ASSEMBLY (Direct Injector)
|
1 |
superseded
|
| - |
858780A2 |
HARNESS ASSEMBLY (Fuel Injector)
|
1 |
superseded
|
| - |
881262A2 |
HARNESS ASSEMBLY Alternator Alternator
|
1 |
|
| - |
878073A2 |
HARNESS ASSEMBLY (Throttle Position Sensor)
|
1 |
superseded
|
| 1 |
899071T01 |
PLATE
|
1 |
|
| 10 |
892971T06 |
HARNESS ASSEMBLY Engine
|
1 |
disc.
|
| 11 |
875302A1 |
HOT STUD ASSEMBLY
|
1 |
|
| 12 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 13 |
85172 |
WASHER
|
1 |
|
| 14 |
93388T21 |
CABLE ASSEMBLY Black
|
1 |
|
| 15 |
93388A17 |
CABLE ASSEMBLY (8.50 Inches)
|
1 |
|
| 16 |
878231A6 |
HARNESS ASSEMBLY Fuse - 100 Ampere
|
1 |
|
| 17 |
53166 |
LOCKWASHER (.312)
|
3 |
|
| 18 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 19 |
88439A46 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 2 |
899145 |
CLIP Tie Strap
|
2 |
|
| 20 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 21 |
822179 |
GROMMET
|
2 |
|
| 22 |
818968 |
BUSHING
|
2 |
superseded
|
| 23 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 24 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 25 |
813938 |
CAP NUT (#10-32)
|
2 |
|
| 26 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 27 |
819514T26 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 28 |
421581 |
BUSHING
|
1 |
|
| 3 |
82129114 |
SCREW (M6 x 14)
|
2 |
|
| 4 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
3 |
superseded
|
| 5 |
882751A1 |
RELAY ASSEMBLY
|
4 |
superseded
|
| 6 |
828102 |
BRACKET
|
4 |
superseded
|
| 7 |
818967 |
GROMMET
|
4 |
|
| 8 |
818968 |
BUSHING
|
4 |
superseded
|
| 9 |
82129125 |
SCREW (M6 x 25 MM)
|
6 |
|
| 9 |
82129155 |
SCREW (M6 x 55)
|
1 |
|
