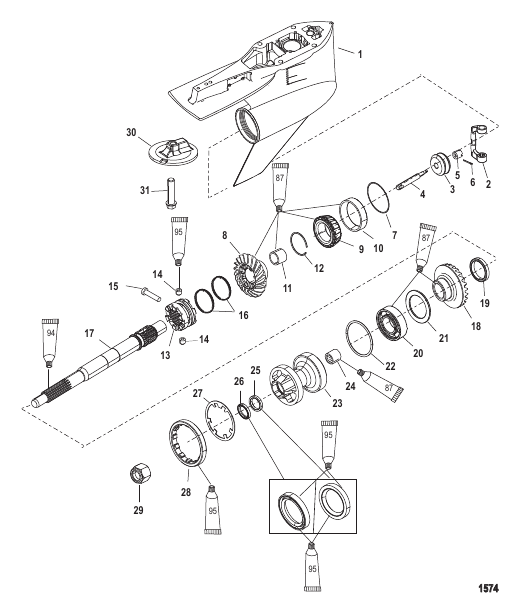

| # | Part Number | Description | Qty | Status |
|---|
| - |
859399T43 |
GEAR HOUSING ASSEMBLY Complete (X-Long)
|
1 |
superseded
|
| - |
859399T37 |
GEAR HOUSING ASSEMBLY Complete (XX-Long)
|
1 |
superseded
|
| - |
816575A4 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
859399T24 |
GEAR HOUSING ASSEMBLY Complete (Basic)
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 11 |
30895T |
BEARING Needle
|
1 |
|
| 12 |
856823 |
RING Retaining
|
1 |
|
| 13 |
848878T |
CLUTCH
|
1 |
|
| 14 |
78909 |
PIN Detent
|
2 |
|
| 15 |
848838 |
PIN Cross
|
1 |
|
| 16 |
78962 |
SPRING
|
2 |
|
| 17 |
824110 |
PROPELLER SHAFT
|
1 |
superseded
|
| 18 |
853593A1 |
GEAR
|
1 |
|
| 19 |
824108 |
SPACER
|
1 |
|
| 2 |
823903 |
SHIFT CRANK
|
1 |
superseded
|
| 20 |
88957T |
BEARING Ball
|
1 |
|
| 21 |
681001 |
RING Thrust
|
1 |
|
| 22 |
31534 |
O-RING
|
1 |
superseded
|
| 23 |
818763T11 |
CARRIER ASSEMBLY Bearing
|
1 |
disc.
|
| 24 |
30956T |
BEARING Needle
|
1 |
|
| 25 |
14077 |
SEAL Oil (INSIDE)
|
1 |
|
| 26 |
76868 |
SEAL (OUTSIDE)
|
1 |
superseded
|
| 27 |
18323 |
TAB WASHER
|
1 |
|
| 28 |
79448 |
RETAINER
|
1 |
superseded
|
| 29 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 3 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 30 |
762145 |
ANODE
|
1 |
superseded
|
| 31 |
66024 |
SCREW (.437-14 x 1.75)
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Spool
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Sleeve
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cotter Pin
|
1 |
|
| 7 |
44491A1 |
SHIM SET
|
AR |
disc.
|
| 8 |
878617A2 |
GEAR SET Forward/Pinion
|
1 |
|
| 9 |
30894A1 |
BEARING SET Cup And Cone
|
1 |
|
