| # | Part Number | Description | Qty | Status |
|---|
| - |
878112T06 |

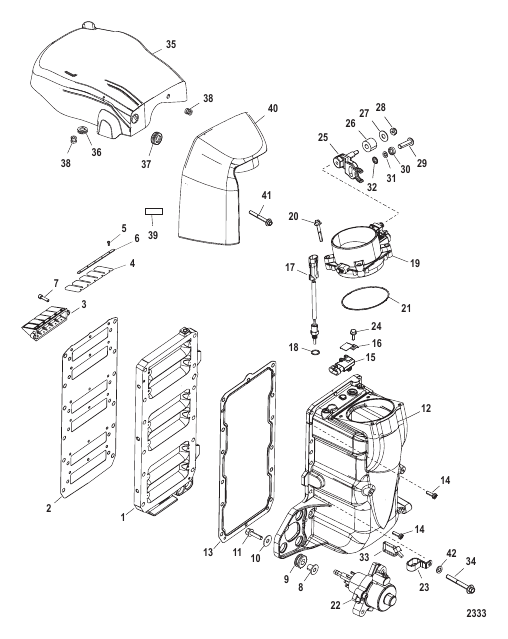

AIR HANDLER ASSEMBLY
|
1 |
disc.
|
| - |
841220A03 |
GASKET SET Powerhead
|
1 |
|
| 1 |
858541T4 |
ADAPTER PLATE
|
1 |
|
| 10 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
3 |
|
| 11 |
81893430 |
SCREW (M8 x 30)
|
3 |
disc.
|
| 12 |
858539T07 |
PLENUM KIT Air
|
1 |
superseded
|
| 13 |
804679004 |
GASKET
|
1 |
|
| 14 |
883942 |
SCREW (M4 x 16)
|
2 |
|
| 15 |
854445 |
SENSOR MAP
|
1 |
|
| 16 |
884522 |
BRACKET MAP Sensor
|
1 |
|
| 17 |
885342001 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 18 |
888814 |
O-RING (.351 x .072)
|
1 |
superseded
|
| 19 |
841194T2 |
THROTTLE BODY KIT
|
1 |
disc.
|
| 2 |
841220 |
GASKET
|
1 |
|
| 20 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 21 |
855426 |
O-RING
|
1 |
|
| 22 |
857149T2 |
PUMP ASSEMBLY Oil
|
1 |
superseded
|
| 23 |
804842 |
CLAMP
|
1 |
disc.
|
| 24 |
1993716 |
SCREW (M6 x 16)
|
1 |
|
| 25 |
858851A03 |
LEVER ASSEMBLY Throttle
|
1 |
|
| 26 |
889610 |
ROLLER
|
1 |
superseded
|
| 27 |
56681 |
WASHER (.203 x .500 x .032)
|
1 |
superseded
|
| 28 |
826709104 |
NUT (#8-32) Stainless Steel
|
1 |
|
| 29 |
889354 |
SCREW Special
|
1 |
disc.
|
| 3 |
840418T2 |
REED BLOCK ASSEMBLY
|
6 |
superseded
|
| 30 |
881991 |
WASHER Cupped
|
1 |
disc.
|
| 31 |
881992 |
WASHER Spool
|
1 |
disc.
|
| 32 |
69432 |
LOCKWASHER External (#10)
|
1 |
|
| 33 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 34 |
82130040 |
SCREW (M6 x 40)
|
11 |
|
| 35 |
850296A5 |
COVER
|
1 |
superseded
|
| 36 |
86361 |
GROMMET
|
1 |
|
| 37 |
13467 |
GROMMET (.88 Inside Diameter)
|
1 |
|
| 38 |
821555001 |
GROMMET
|
2 |
superseded
|
| 39 |
881865 |
DECAL Caution-Start in Gear (Start In Gear)
|
1 |
|
| 4 |
840445A3 |
REED PETAL KIT
|
1 |
superseded
|
| 40 |
854343T11 |
ATTENUATOR Air
|
1 |
|
| 41 |
82130045 |
SCREW (M6 x 45)
|
1 |
|
| 42 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 5 |
849038 |
SCREW (M3 x 5)
|
60 |
|
| 6 |
840447 |
REED PLATE
|
12 |
|
| 7 |
8555252 |
SCREW (M6)
|
12 |
|
| 8 |
855364 |
BUSHING
|
3 |
|
| 9 |
855362001 |
GROMMET
|
3 |
|
