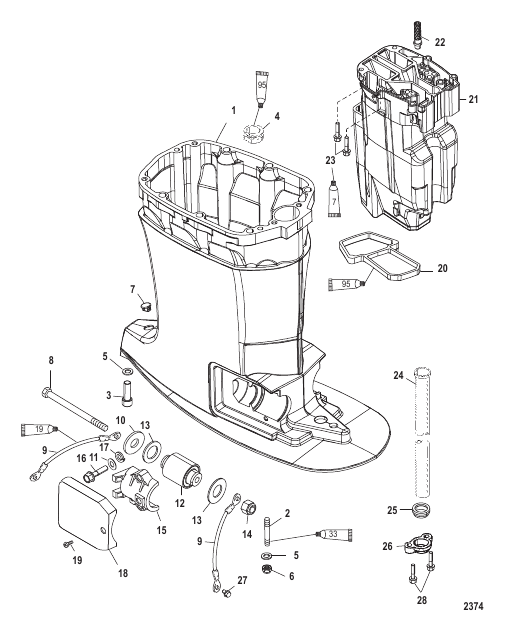

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
832937A3 |
HOUSING ASSEMBLY Driveshaft
|
1 |
superseded
|
| 10 |
815432 |
WASHER (.562 x 2.00 x .125)
|
2 |
|
| 11 |
847541 |
WASHER
|
4 |
|
| 12 |
840361 |
MOUNT
|
2 |
superseded
|
| 13 |
825190 |
WASHER
|
2 |
|
| 14 |
815434 |
NUT
|
2 |
superseded
|
| 15 |
8186442 |
CLAMP
|
2 |
disc.
|
| 16 |
84036240 |
SCREW (M8 x 40)
|
4 |
disc.
|
| 17 |
72521 |
LOCKWASHER Internal Tooth
|
1 |
|
| 18 |
818645F1 |
COVER Black
|
2 |
superseded
|
| 19 |
69079 |
SCREW (#10-16 x .440)
|
2 |
|
| 2 |
856983 |
STUD (M12 x 52)
|
4 |
superseded
|
| 20 |
8329321 |
SEAL
|
1 |
|
| 21 |
833116A4 |
TUBE ASSEMBLY Exhaust
|
1 |
|
| 22 |
NSS |
NOT SOLD SEPARATE Strainer
|
1 |
|
| 23 |
81893435 |
SCREW (M8 x 35)
|
4 |
|
| 24 |
8329417 |
TUBE Water
|
1 |
superseded
|
| 25 |
832940 |
SEAL [0T979999] & Below
|
1 |
superseded
|
| 25 |
832940001 |
SEAL [0T980000] & Up
|
1 |
|
| 26 |
8329391 |
CLAMP
|
1 |
|
| 27 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
1 |
|
| 28 |
81893435 |
SCREW (M8 x 35)
|
2 |
|
| 3 |
892860 |
SCREW (M12 x 35) Internal Hex
|
1 |
|
| 3 |
857136 |
SCREW (M12 x 35 MM) External Hex
|
1 |
|
| 4 |
8331231 |
GROMMET
|
1 |
|
| 5 |
856982 |
WASHER (.500 x .810 x .090) Stainless Steel
|
5 |
|
| 6 |
857008 |
NUT (M12 x 1.75)
|
4 |
superseded
|
| 7 |
64649 |
PLUG
|
1 |
|
| 8 |
815431 |
SCREW (M14 x 178)
|
2 |
superseded
|
| 9 |
88238A10 |
CABLE ASSEMBLY Ground
|
2 |
|
