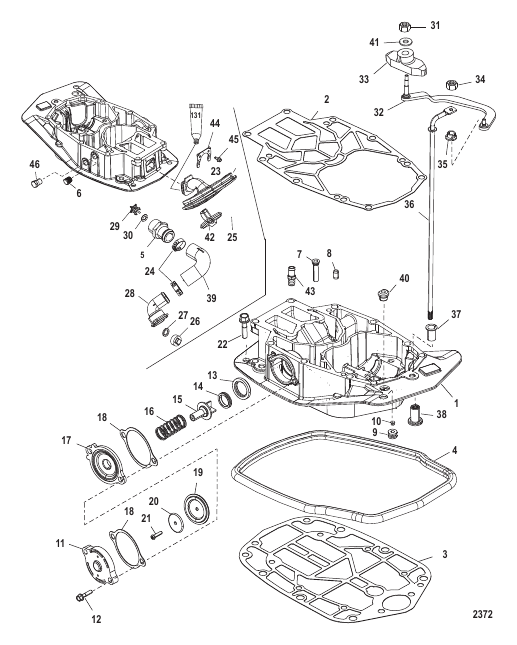

| # | Part Number | Description | Qty | Status |
|---|
| - |
832934A00 |
GASKET SET Powerhead
|
1 |
|
| - |
883894A04 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
840192T14 |
PLATE ASSEMBLY Exhaust
|
1 |
disc.
|
| 10 |
48323 |
PLUG
|
1 |
|
| 11 |
65663A2 |
COVER ASSEMBLY
|
1 |
superseded
|
| 12 |
81893435 |
SCREW (M8 x 35)
|
2 |
|
| 13 |
814190 |
CARRIER
|
1 |
|
| 14 |
814191 |
GROMMET
|
1 |
|
| 15 |
814189 |
POPPET
|
1 |
|
| 16 |
64878 |
SPRING (Black)
|
1 |
|
| 17 |
65664A1 |
PLATE ASSEMBLY
|
1 |
|
| 18 |
88907003 |
GASKET
|
2 |
|
| 19 |
648771 |
DIAPHRAGM
|
1 |
|
| 2 |
8329335 |
GASKET
|
1 |
disc.
|
| 20 |
76451 |
WASHER
|
1 |
|
| 21 |
69570 |
SCREW (#10-16 x .750)
|
1 |
|
| 22 |
81893435 |
SCREW (M8 x 35)
|
6 |
|
| 23 |
850306A04 |
BOOT KIT Idle Exhaust (Includes ref.'s 44 and 45)
|
1 |
|
| 24 |
850896 |
CLAMP (28.6)
|
2 |
|
| 25 |
821904 |
FITTING Tell-Tale
|
1 |
superseded
|
| 26 |
821908 |
PLUG
|
1 |
|
| 27 |
821915 |
WASHER
|
1 |
|
| 28 |
8596001 |
FITTING
|
1 |
|
| 29 |
8219631 |
CHECK VALVE
|
1 |
|
| 3 |
8329344 |
GASKET (LOWER)
|
1 |
disc.
|
| 30 |
30641 |
O-RING (.299 x .103)
|
1 |
|
| 31 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 32 |
883142A2 |
SHIFT LINK [0T979999] & Below
|
1 |
superseded
|
| 32 |
883142A03 |
SHIFT LINK KIT [0T980000] & Up
|
1 |
|
| 33 |
8539683 |
SLIDE
|
1 |
|
| 34 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 35 |
42994 |
BUSHING
|
1 |
|
| 36 |
8240701 |
SHIFT SHAFT Upper
|
1 |
superseded
|
| 37 |
48237 |
BUSHING
|
1 |
|
| 38 |
43585 |
COUPLING
|
1 |
|
| 39 |
859626A1 |
FLUSH HOSE KIT (INLET)
|
1 |
|
| 4 |
8238051 |
SEAL
|
1 |
superseded
|
| 40 |
126021 |
GROMMET [0T979999] & Below
|
1 |
superseded
|
| 40 |
12602002 |
GROMMET [0T980000] & Up
|
1 |
|
| 41 |
35459 |
WASHER
|
1 |
|
| 42 |
830756109 |
HOSE (57.00 Inches Bulk) (Cut to 3 Inches)
|
1 |
superseded
|
| 43 |
858855 |
FITTING Straight
|
2 |
|
| 44 |
888910 |
PLATE
|
1 |
|
| 45 |
82239312 |
SCREW (M5 x 12)
|
2 |
|
| 46 |
328022 |
PLUG Pipe (.125-27) Brass
|
1 |
|
| 5 |
8320761 |
FITTING Check Valve
|
1 |
|
| 6 |
32803 |
PLUG Pipe (.375-18) Brass
|
1 |
superseded
|
| 7 |
817519A1 |
CHECK VALVE ASSEMBLY Drain
|
2 |
|
| 8 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
4 |
|
| 9 |
822002 |
GROMMET
|
1 |
|
