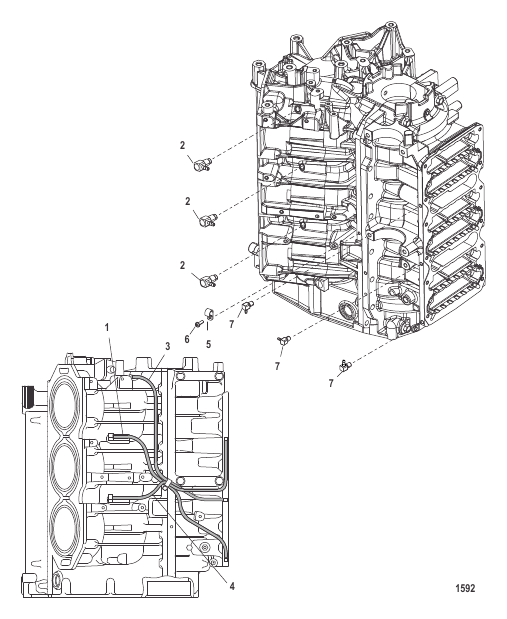

Starboard Center Main Oiling System
Parts (9)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 877869A03 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T800999] & Below POWERHEAD ASSEMBLY [0T800999] & Below |
1 | superseded |
| - | 877869A04 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T801000] & Up POWERHEAD ASSEMBLY [0T801000] & Up |
1 | superseded |
| 1 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 15-1/2 Inches) TUBING (38.00 Inches Bulk) (Cut to 15-1/2 Inches) |
1 | superseded |
| 2 | 8592352 |
ОБРАТНЫЙ КЛАПАН 90 градусов (0.0625-27) CHECK VALVE 90 Degree (.0625-27) |
3 | |
| 3 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 16-1/2 Inches) TUBING (38.00 Inches Bulk) (Cut to 16-1/2 Inches) |
1 | superseded |
| 4 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 15 Inches) TUBING (38.00 Inches Bulk) (Cut to 15 Inches) |
1 | superseded |
| 5 | 23567 |
ЗАЖИМ CLIP |
1 | |
| 6 | 878608 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 7 | 887801 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.0625-27) FITTING Elbow 90 Degree (.0625-27) |
3 |
