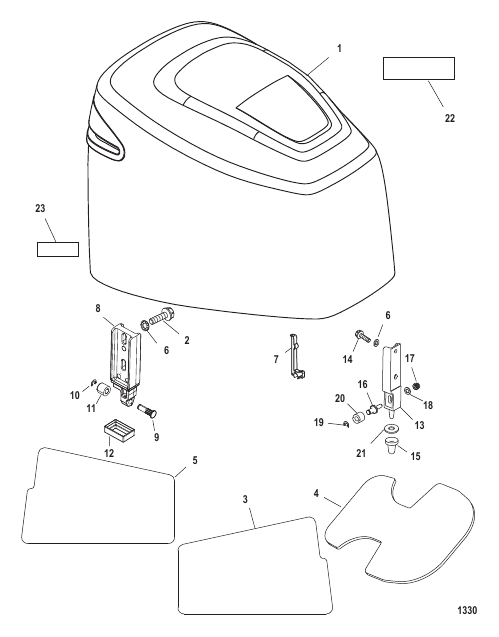

Top Cowl
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 855410A04 |
НАБОР НАКЛЕЕК (200 Mercury/Tracker)(Red) DECAL SET (200 Mercury/Tracker)(Red) |
1 | discontinued |
| - | 855412A04 |
НАБОР НАКЛЕЕК (200 Mercury Saltwater)(Blue) DECAL SET (200 Mercury Saltwater)(Blue) |
1 | discontinued |
| - | 855412A06 |
НАБОР НАКЛЕЕК (200 - All 2006 Models) DECAL SET (200 - All 2006 Models) |
1 | discontinued |
| - | 855405A03 |
НАБОР НАКЛЕЕК (225 Black Long)(2003) DECAL SET (225 Black Long)(2003) |
1 | superseded |
| - | 855405A04 |
НАБОР НАКЛЕЕК (225 Black Long)(Red)(2004 and 2005) DECAL SET (225 Black Long)(Red)(2004 and 2005) |
1 | discontinued |
| - | 855408A03 |
НАБОР НАКЛЕЕК (225 Black X-Long/XX-Long)(2003) DECAL SET (225 Black X-Long/XX-Long)(2003) |
1 | superseded |
| - | 855408A04 |
НАБОР НАКЛЕЕК (225 Black X-Long/XX-Long)(Blue)(2004 and 2005) DECAL SET (225 Black X-Long/XX-Long)(Blue)(2004 and 2005) |
1 | discontinued |
| - | 855408A06 |
НАБОР НАКЛЕЕК (225 - All Black 2006 Models) DECAL SET (225 - All Black 2006 Models) |
1 | discontinued |
| - | 855409A03 |
НАБОР НАКЛЕЕК (225 Gray) DECAL SET (225 Gray) |
1 | discontinued |
| 1 | 881288T1 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Black) TOP COWL ASSEMBLY (Black) |
1 | discontinued |
| 1 | 881288T2 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Silver) TOP COWL ASSEMBLY (Silver) |
1 | discontinued |
| 10 | 8237951 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 11 | 815263 |
РОЛИК ROLLER |
2 | superseded |
| 12 | 8506851 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0T962422] & Below GROMMET [0T962422] & Below |
1 | superseded |
| 12 | 850685002 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0T962423] & Up GROMMET [0T962423] & Up |
1 | superseded |
| 13 | 821249M2 |
КРОНШТЕЙН Передний BRACKET Front |
1 | superseded |
| 14 | 82130020 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
2 | |
| 15 | 815477 |
УПОР Защелка BUMPER Latch |
1 | |
| 16 | 8155381 |
ШТИФТ Ролик PIN Roll |
1 | |
| 17 | 401366 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 18 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
1 | superseded |
| 19 | 8237951 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 2 | 82130030 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
4 | |
| 20 | 815263 |
РОЛИК ROLLER |
1 | superseded |
| 21 | 87161 |
ШАЙБА WASHER |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Break-In NOT SOLD SEPARATE Decal-Break-In |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Counter Rotation NOT SOLD SEPARATE Decal-Counter Rotation |
1 | |
| 3 | 884041A1 |
КОМПЛЕКТ ЗВУКОПОГЛОТИТЕЛЯ SOUND BLANKET KIT |
1 | superseded |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Sound Blanket-Top NOT SOLD SEPARATE Sound Blanket-Top |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Sound Blanket-Port NOT SOLD SEPARATE Sound Blanket-Port |
1 | |
| 6 | 93702 |
ШАЙБА (Наружная звезда 0.250) WASHER (.250 External Star) |
6 | |
| 7 | 826639T |
КРЫШКА COVER |
1 | |
| 8 | 850682T4 |
КРЮК В СБОРЕ Задняя защелка HOOK ASSEMBLY Rear Latch |
2 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pin NOT SOLD SEPARATE Pin |
2 |
