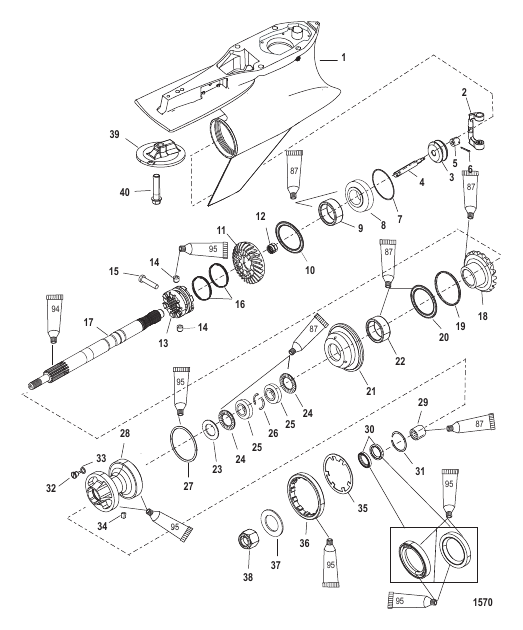

| # | Part Number | Description | Qty | Status |
|---|
| - |
840307T14 |
GEAR HOUSING ASSEMBLY Complete (1.62:1-Long)
|
1 |
superseded
|
| - |
840307T18 |
GEAR HOUSING ASSEMBLY Complete (1.62:1- X-Long)
|
1 |
superseded
|
| - |
840307T16 |
GEAR HOUSING ASSEMBLY Complete (1.75:1-Long)
|
1 |
superseded
|
| - |
840307T20 |
GEAR HOUSING ASSEMBLY Complete (1.75:1-X-Long)
|
1 |
superseded
|
| - |
816575A6 |
SEAL KIT Gear Housing
|
1 |
|
| - |
840389K06 |
PROP HUB KIT
|
1 |
superseded
|
| - |
840382A02 |
SNUBBER STRIP KIT
|
1 |
|
| 1 |
840307T3 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
815480 |
BEARING Thrust
|
1 |
|
| 11 |
828290A5 |
GEAR ASSEMBLY Reverse (1.62:1)
|
1 |
|
| 11 |
828696T4 |
GEAR Reverse (1.75:1)
|
1 |
|
| 12 |
15844 |
BEARING ASSEMBLY Roller
|
1 |
|
| 13 |
848878T |
CLUTCH
|
1 |
|
| 14 |
78909 |
PIN Detent
|
2 |
|
| 15 |
848838 |
PIN Cross
|
1 |
|
| 16 |
78962 |
SPRING
|
2 |
|
| 17 |
840452A03 |
PROPELLER SHAFT
|
1 |
disc.
|
| 18 |
828289A4 |
GEAR ASSEMBLY Forward (1.62:1)
|
1 |
|
| 18 |
828695A3 |
GEAR ASSEMBLY Forward (1.75:1)
|
1 |
|
| 19 |
1761540 |
SPACER Shim (.178)
|
AR |
|
| 19 |
1761541 |
SPACER SHIM (.180)
|
AR |
|
| 19 |
1761542 |
SPACER SHIM (.182)
|
AR |
|
| 19 |
1761543 |
SPACER SHIM (.184)
|
AR |
|
| 19 |
1761544 |
SPACER SHIM (.186)
|
AR |
|
| 19 |
1761545 |
SPACER SHIM (.188)
|
AR |
|
| 19 |
1761546 |
SPACER SHIM (.190)
|
AR |
|
| 19 |
1761547 |
SPACER SHIM (.192)
|
AR |
|
| 19 |
1761548 |
SPACER SHIM (.194)
|
AR |
|
| 19 |
1761549 |
SPACER SHIM (.196)
|
AR |
|
| 19 |
1761550 |
SPACER SHIM (.198)
|
AR |
|
| 19 |
1761551 |
SPACER SHIM (.200)
|
AR |
|
| 2 |
823903 |
SHIFT CRANK
|
1 |
superseded
|
| 20 |
815480 |
BEARING Thrust
|
1 |
|
| 21 |
848875A1 |
ADAPTER ASSEMBLY Bearing
|
1 |
|
| 22 |
15843T |
BEARING Needle
|
1 |
|
| 23 |
18448 |
THRUST WASHER
|
1 |
|
| 24 |
15842 |
BEARING Thrust
|
2 |
|
| 25 |
8182912 |
THRUST RACE
|
2 |
superseded
|
| 26 |
814605 |
KEEPER
|
2 |
|
| 27 |
31534 |
O-RING
|
1 |
superseded
|
| 28 |
848841T1 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 29 |
817072 |
BEARING Roller
|
1 |
|
| 3 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 30 |
815565 |
SEAL Oil
|
2 |
|
| 31 |
817071 |
RING Snap
|
1 |
|
| 32 |
67892A06 |
PLUG KIT Drain - Magnetic
|
1 |
superseded
|
| 33 |
191833 |
SEAL
|
1 |
superseded
|
| 34 |
30281 |
KEY
|
1 |
|
| 35 |
79447 |
TAB WASHER
|
1 |
|
| 36 |
79448 |
RETAINER
|
1 |
superseded
|
| 37 |
85344 |
WASHER (.750 Inside Diameter)
|
1 |
|
| 38 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 39 |
762145 |
ANODE
|
1 |
superseded
|
| 4 |
NSS |
NOT SOLD SEPARATE Spool
|
1 |
|
| 40 |
66024 |
SCREW (.437-14 x 1.75)
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Sleeve
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cotter Pin
|
1 |
|
| 7 |
47397A1 |
SHIM SET
|
AR |
|
| 8 |
848876A1 |
ADAPTER ASSEMBLY Bearing
|
1 |
|
| 9 |
15843T |
BEARING Needle
|
1 |
|
