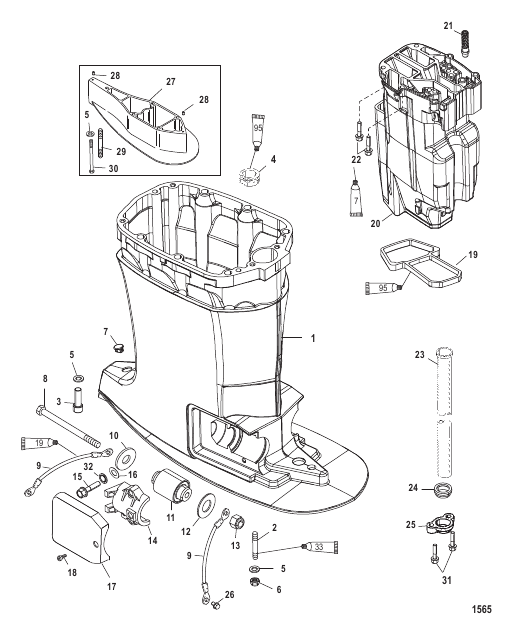

Driveshaft Housing and Exhaust Tube
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832937A05 |
КОРПУС В СБОРЕ Карданный вал (Long) HOUSING ASSEMBLY Driveshaft (Long) |
1 | superseded |
| 1 | 832938A5 |
КОРПУС В СБОРЕ Карданный вал (X/XX-Long) HOUSING ASSEMBLY Driveshaft (X/XX-Long) |
1 | superseded |
| 10 | 815432 |
ШАЙБА (0.562 x 2.00 x 0.125) WASHER (.562 x 2.00 x .125) |
2 | |
| 11 | 840361 |
КРЕПЛЕНИЕ MOUNT |
2 | superseded |
| 12 | 825190 |
ШАЙБА WASHER |
2 | |
| 13 | 815434002 |
ГАЙКА (M14) NUT (M14) |
2 | superseded |
| 14 | 8186442 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 15 | 84036240 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
4 | discontinued |
| 16 | 847541 |
ШАЙБА WASHER |
4 | |
| 17 | 818645F1 |
КРЫШКА Черный COVER Black |
2 | superseded |
| 18 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
2 | |
| 19 | 8329321 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 2 | 856983 |
ШПИЛЬКА (M12 x 52) (Long/X-Long) STUD (M12 x 52) (Long/X-Long) |
4 | superseded |
| 2 | 848843 |
ШПИЛЬКА (M12 x 65) (Long/X-Long) STUD (M12 x 65) (Long/X-Long) |
4 | superseded |
| 20 | 833116A11 |
ТРУБА В СБОРЕ Выхлоп (Long) TUBE ASSEMBLY Exhaust (Long) |
1 | discontinued |
| 20 | 833116A4 |
ТРУБА В СБОРЕ Выхлоп (X-Long/XX-Long) TUBE ASSEMBLY Exhaust (X-Long/XX-Long) |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Strainer NOT SOLD SEPARATE Strainer |
1 | |
| 22 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 23 | 8329417 |
ТРУБА Вода (Long) TUBE Water (Long) |
1 | superseded |
| 23 | 8329418 |
ТРУБА Вода (X-Long) TUBE Water (X-Long) |
1 | superseded |
| 23 | 8329419 |
ТРУБА Вода (XX-Long) TUBE Water (XX-Long) |
1 | superseded |
| 24 | 832940001 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 25 | 8329391 |
ЗАЖИМ CLAMP |
1 | |
| 26 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 27 | 823979T1 |
ПРОСТАВКА (XX-Long) SPACER (XX-Long) |
1 | superseded |
| 28 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) (XX-Long) PIN Dowel - Without Hole (.375 x .625) (XX-Long) |
2 | |
| 29 | 857009 |
ШПИЛЬКА (M12 x 179) (XX-Long) STUD (M12 x 179) (XX-Long) |
4 | superseded |
| 3 | 892860 |
ВИНТ (M12 x 35) (Long/X-Long) SCREW (M12 x 35) (Long/X-Long) |
1 | |
| 30 | 857137 |
ВИНТ (M12 x 160) (XX-Long) SCREW (M12 x 160) (XX-Long) |
1 | |
| 31 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 32 | 72521 |
СТОПОРНАЯ ШАЙБА Внутренние зубья LOCKWASHER Internal Tooth |
1 | |
| 4 | 8331231 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 5 | 4002321 |
ШАЙБА (12.80 мм x 24.0 мм x 2.4 мм), нержавеющая сталь WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel |
4 | |
| 6 | 857008 |
ГАЙКА (M12 x 1.75) NUT (M12 x 1.75) |
4 | superseded |
| 7 | 64649 |
ПРОБКА PLUG |
1 | |
| 8 | 815431002 |
БОЛТ (M14 x 178) BOLT (M14 x 178) |
2 | superseded |
| 9 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
2 |
