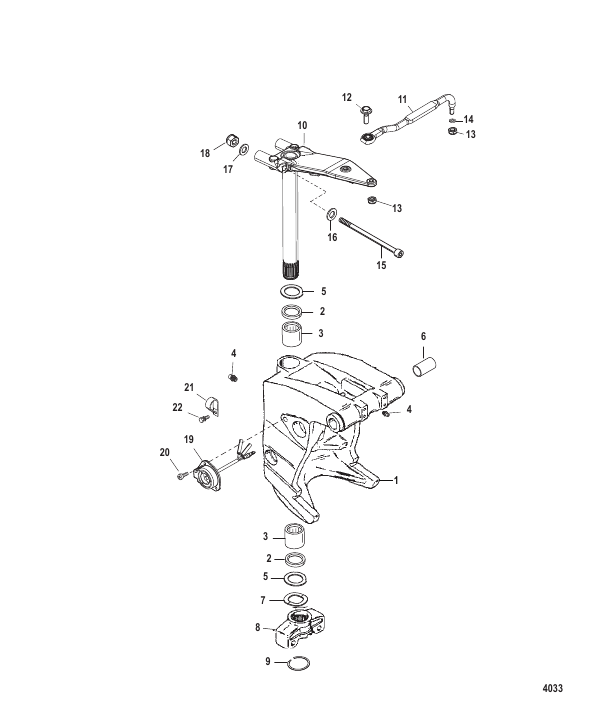

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
847723A8 |
SWIVEL BRACKET ASSEMBLY
|
1 |
superseded
|
| 10 |
8407931 |
SWIVEL PIN
|
1 |
superseded
|
| 11 |
92876A10 |
LINK ROD ASSEMBLY
|
1 |
superseded
|
| 12 |
849838 |
SCREW (.375-24 x 1.250)
|
1 |
|
| 13 |
826709113 |
NUT (.375-24) Stainless Steel
|
2 |
superseded
|
| 14 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 15 |
8495812 |
SCREW (.500-13 x 7.00)
|
2 |
superseded
|
| 16 |
816056 |
WASHER
|
2 |
|
| 17 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
2 |
|
| 18 |
844766 |
NUT (.500-13)
|
2 |
|
| 19 |
841198A1 |
SENSOR ASSEMBLY Trim
|
1 |
|
| 2 |
847729 |
SEAL Oil
|
2 |
|
| 20 |
852453 |
SCREW (#10-24 x .560)
|
2 |
|
| 21 |
88512 |
CLAMP
|
1 |
|
| 22 |
88829 |
SCREW (#10-24 x .500)
|
1 |
|
| 3 |
847726 |
BEARING
|
2 |
|
| 4 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 5 |
847728 |
BEARING
|
2 |
|
| 6 |
82203522 |
BEARING (1.375 Inch-Port)
|
1 |
|
| 6 |
82203516 |
BEARING (1 Inch-Starboard)
|
1 |
|
| 7 |
78854 |
WAVE WASHER
|
1 |
|
| 8 |
814084T1 |
YOKE Bottom
|
1 |
|
| 9 |
848125 |
RING Retaining - Spiral Lock
|
2 |
|
