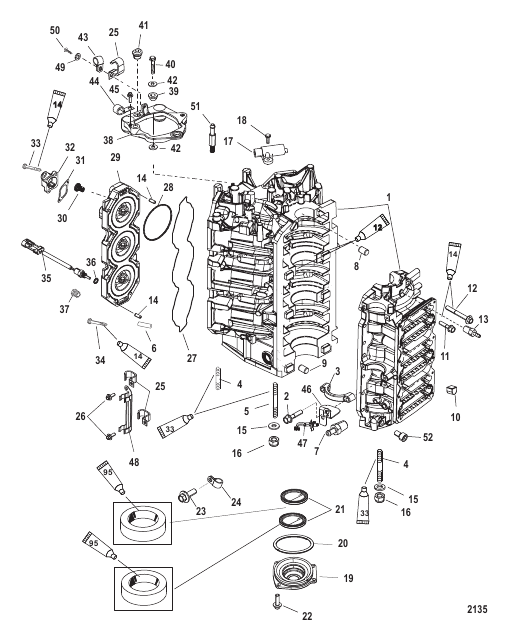

| # | Part Number | Description | Qty | Status |
|---|
| - |
841017A04 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| - |
841220A03 |
GASKET SET Powerhead
|
1 |
|
| 1 |
9811T68 |
CYLINDER BLOCK
|
1 |
superseded
|
| 10 |
850309 |
PLUG
|
6 |
superseded
|
| 11 |
81893435 |
SCREW (M8 x 35)
|
14 |
|
| 12 |
82446180 |
SCREW (M10 x 80)
|
8 |
|
| 13 |
8245021 |
CONNECTOR
|
1 |
|
| 14 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 15 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
10 |
superseded
|
| 16 |
4013610 |
NUT (M10) Stainless Steel
|
10 |
|
| 17 |
8283582 |
SENSOR
|
1 |
superseded
|
| 18 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 19 |
9787A4 |
END CAP ASSEMBLY
|
1 |
|
| 2 |
81893440 |
SCREW (M8 x 40)
|
4 |
|
| 20 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 21 |
8308981 |
SEAL
|
2 |
|
| 22 |
82130020 |
SCREW (M6 x 20)
|
4 |
|
| 23 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 24 |
858902 |
CLAMP
|
1 |
|
| 25 |
65292 |
J CLIP
|
3 |
superseded
|
| 26 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 27 |
818574 |
SEAL
|
2 |
|
| 28 |
884391 |
SEAL
|
6 |
|
| 29 |
841021A04 |
CYLINDER HEAD ASSEMBLY (Starboard)
|
1 |
superseded
|
| 29 |
841020A04 |
CYLINDER HEAD ASSEMBLY (Port)
|
1 |
superseded
|
| 3 |
8569662 |
BRACKET
|
2 |
superseded
|
| 30 |
885599002 |
THERMOSTAT 49°C (120°F)
|
2 |
superseded
|
| 31 |
8503181 |
GASKET
|
2 |
|
| 32 |
887601 |
COVER Thermostat (Port)
|
1 |
superseded
|
| 32 |
887602 |
COVER Thermostat (Starboard)
|
1 |
superseded
|
| 33 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 34 |
891570 |
SCREW (M8 x 50)
|
40 |
superseded
|
| 35 |
885342001 |
SENSOR ASSEMBLY
|
2 |
superseded
|
| 36 |
888814 |
O-RING (.351 x .072)
|
2 |
superseded
|
| 37 |
328022 |
PLUG Pipe (.125-27) Brass
|
1 |
|
| 38 |
857186A1 |
PLATE ASSEMBLY
|
1 |
superseded
|
| 39 |
855729 |
MOUNT
|
3 |
|
| 4 |
903509 |
STUD (M10 x 1.5 x 64)
|
4 |
|
| 40 |
82130145 |
SCREW (M10 x 45)
|
3 |
|
| 41 |
19565 |
GROMMET
|
1 |
superseded
|
| 42 |
855725 |
WASHER
|
6 |
|
| 43 |
858424 |
CLAMP
|
1 |
|
| 44 |
858951 |
J CLIP
|
1 |
|
| 45 |
82130012 |
SCREW (M6 x 12)
|
1 |
|
| 46 |
8589521 |
BRACKET
|
1 |
disc.
|
| 47 |
859376 |
CLIP
|
1 |
|
| 48 |
8266241 |
CLAMP
|
1 |
|
| 49 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 5 |
8154431 |
STUD (M10 x 1.5 x 155)
|
6 |
|
| 50 |
82130016 |
SCREW (M6 x 16)
|
1 |
|
| 51 |
8215832 |
PIN Special (1.5 Inches)
|
1 |
|
| 6 |
8248577 |
DEFLECTOR
|
6 |
|
| 7 |
8781051 |
CHECK VALVE
|
1 |
|
| 8 |
67296 |
PIN
|
3 |
superseded
|
| 9 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
