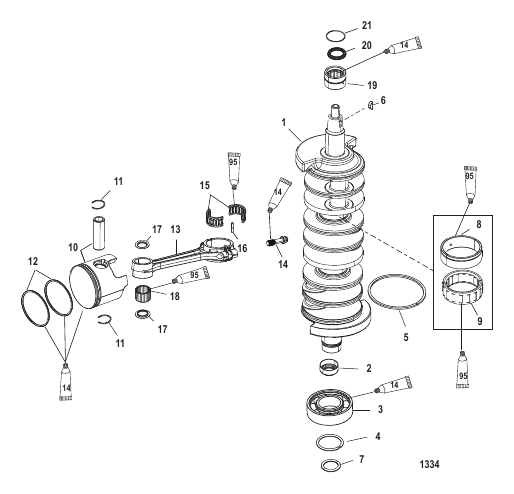

| # | Part Number | Description | Qty | Status |
|---|
| - |
841017A03 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| - |
841220A03 |
GASKET SET Powerhead
|
1 |
|
| 1 |
9784A14 |
CRANKSHAFT
|
1 |
superseded
|
| 10 |
841015T1 |
PISTON (Starboard - Standard)
|
3 |
|
| 10 |
841016T1 |
PISTON (Port - Standard)
|
3 |
|
| 11 |
841202 |
RING
|
12 |
|
| 12 |
827179A12 |
RING SET Piston
|
1 |
|
| 13 |
822373A7 |
CONNECTING ROD ASSEMBLY
|
6 |
superseded
|
| 14 |
94320 |
SCREW (.375-24 x 1.250)
|
12 |
|
| 15 |
43012A1 |
BEARING/CAGE KIT
|
6 |
superseded
|
| 16 |
NSS |
NOT SOLD SEPARATE Needle Roller Bearing
|
96 |
|
| 17 |
88263 |
THRUST WASHER
|
12 |
|
| 18 |
88258 |
NEEDLE Roller Bearing
|
204 |
superseded
|
| 19 |
816773A2 |
BEARING ASSEMBLY Upper
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Wear Sleeve
|
1 |
|
| 20 |
859093 |
SEAL
|
1 |
|
| 21 |
823683 |
O-RING (1.989 x .070)
|
1 |
|
| 3 |
67923T |
BEARING Ball Lower
|
1 |
|
| 4 |
67446 |
RING
|
1 |
|
| 5 |
843198 |
RING Seal
|
7 |
superseded
|
| 6 |
91800 |
KEY Woodruff
|
1 |
|
| 7 |
35126 |
O-RING (.859 x .139)
|
1 |
|
| 8 |
88270A1 |
RACE ASSEMBLY
|
2 |
superseded
|
| 9 |
88269T |
BEARING ASSEMBLY
|
2 |
|
