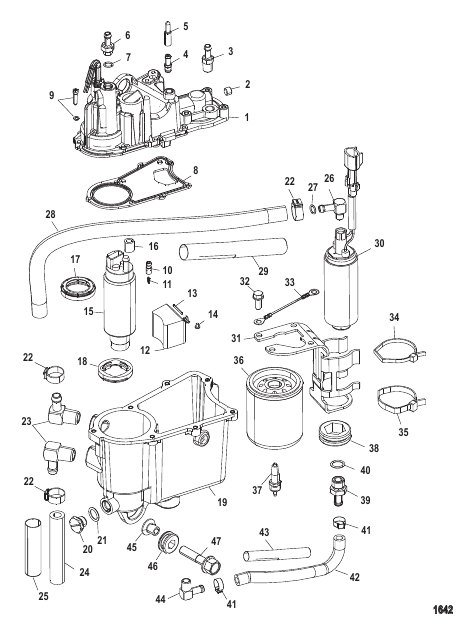

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850250T1 |
COVER KIT
|
1 |
disc.
|
| 10 |
883247A1 |
VALVE/SEAT KIT Inlet
|
1 |
|
| 11 |
855431 |
VALVE Needle
|
1 |
superseded
|
| 12 |
883253A1 |
FLOAT KIT
|
1 |
|
| 13 |
F10064 |
SHAFT
|
1 |
|
| 14 |
5902 |
SCREW (#6-32 x .187)
|
1 |
disc.
|
| 15 |
889441T |
PUMP ASSEMBLY
|
1 |
|
| 16 |
855428 |
SLEEVE
|
1 |
superseded
|
| 17 |
803878 |
SEAL Black
|
1 |
|
| 18 |
8554331 |
SEAL Brown
|
1 |
|
| 19 |
855434A1 |
BOWL KIT
|
1 |
disc.
|
| 2 |
881830 |
PLUG
|
1 |
superseded
|
| 20 |
855435A1 |
PLUG KIT
|
1 |
|
| 21 |
883209 |
O-RING
|
1 |
superseded
|
| 22 |
856880 |
CLAMP Hose (15.3)
|
3 |
superseded
|
| 23 |
8554245 |
ELBOW
|
2 |
disc.
|
| 24 |
85682239 |
TUBING (17.00 Inches Bulk) (Cut to 14.00 Inch Length)
|
1 |
|
| 25 |
85686953 |
SLEEVE (27.00 Inches Bulk)
|
1 |
disc.
|
| 26 |
855802A1 |
ELBOW
|
1 |
|
| 27 |
883551 |
O-RING
|
1 |
|
| 28 |
856825 |
HOSE
|
1 |
disc.
|
| 29 |
85686953 |
SLEEVE (27.00 Inches Bulk)
|
1 |
disc.
|
| 3 |
881740 |
FITTING Straight
|
1 |
disc.
|
| 30 |
8558432 |
PUMP ASSEMBLY
|
1 |
superseded
|
| 31 |
855756A1 |
BRACKET KIT
|
1 |
disc.
|
| 32 |
1993716 |
SCREW (M6 x 16)
|
4 |
|
| 33 |
881831 |
WIRE ASSEMBLY
|
1 |
disc.
|
| 34 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 35 |
850181 |
TIE STRAP (11.750 Inches)
|
1 |
|
| 36 |
18458T4 |
FILTER KIT
|
1 |
|
| 37 |
8285861 |
PROBE
|
1 |
superseded
|
| 38 |
856928 |
GROMMET
|
1 |
disc.
|
| 39 |
856812 |
FITTING
|
1 |
superseded
|
| 4 |
881741 |
FITTING
|
1 |
disc.
|
| 40 |
880863 |
O-RING
|
1 |
|
| 41 |
13791 |
CLAMP (15.7)
|
2 |
superseded
|
| 42 |
856778 |
HOSE
|
1 |
disc.
|
| 43 |
85686953 |
SLEEVE (27.00 Inches Bulk)
|
1 |
disc.
|
| 44 |
8839761 |
FITTING
|
1 |
disc.
|
| 45 |
855364 |
BUSHING
|
3 |
|
| 46 |
855362 |
GROMMET
|
3 |
superseded
|
| 47 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 6 |
855437A2 |
FITTING KIT Pump Outlet
|
1 |
|
| 7 |
883209 |
O-RING
|
1 |
superseded
|
| 8 |
855528 |
GASKET
|
1 |
disc.
|
| 9 |
808612 |
SCREW AND WASHER (#8-32 x .750)
|
7 |
|
