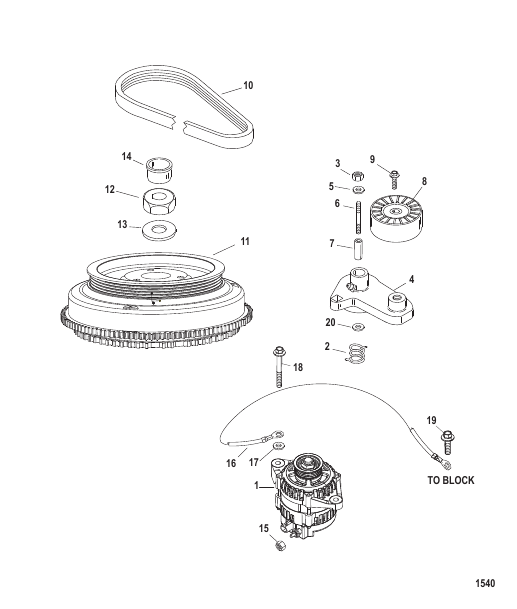

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881247A1 | ALTERNATOR | 1 | superseded |
| 10 | 8285075 | BELT | 1 | superseded |
| 11 | 859619T1 | FLYWHEEL | 1 | |
| 12 | 42979 | NUT (M16) | 1 | |
| 13 | 68229 | WASHER (.641 x 1.250 x .190) | 1 | superseded |
| 14 | 45907 | PLUG Yellow | 1 | |
| 15 | 401386 | NUT (M6) Stainless Steel | 1 | |
| 16 | 856583A5 | CABLE ASSEMBLY | 1 | |
| 17 | 4002319 | WASHER | 1 | |
| 18 | 82130150 | SCREW (M10 x 50) | 2 | |
| 19 | 82130012 | SCREW (M6 x 12) | 1 | |
| 2 | 8523742 | SPRING | 1 | |
| 20 | 47533 | WASHER Thermostat | 1 | |
| 3 | 400636 | NUT | 1 | |
| 4 | 856815T2 | ARM TENSIONER ASSEMBLY | 1 | |
| 5 | 4002320 | WASHER | 1 | |
| 6 | 858778 | STUD (M10 x 91) | 1 | superseded |
| 7 | 8568941 | BUSHING | 1 | |
| 8 | 852385A2 | PULLEY ASSEMBLY | 1 | superseded |
| 9 | 4010835 | SCREW (M10 x 35) Hex Flange - Stainless Steel | 1 |
