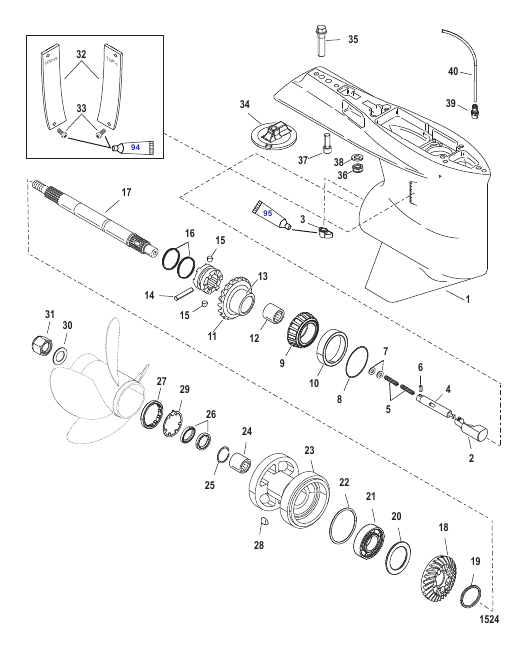

| # | Part Number | Description | Qty | Status |
|---|
| - |
827214T23 |
GEAR HOUSING ASSEMBLY Complete
|
1 |
disc.
|
| - |
840389K06 |
PROP HUB KIT
|
1 |
superseded
|
| - |
840382A02 |
SNUBBER STRIP KIT
|
1 |
|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
827214T25 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 11 |
44104A7 |
GEAR SET (Includes Pinion)
|
1 |
|
| 12 |
549281 |
BEARING Roller
|
1 |
|
| 13 |
42672T |
RATCHET
|
1 |
|
| 14 |
42671 |
PIN Cross
|
1 |
|
| 15 |
78909 |
PIN Detent
|
2 |
|
| 16 |
78962 |
SPRING
|
2 |
|
| 17 |
840451A03 |
PROPELLER SHAFT
|
1 |
disc.
|
| 18 |
822824A1 |
GEAR ASSEMBLY Reverse
|
1 |
superseded
|
| 19 |
822823 |
THRUST RING
|
1 |
|
| 2 |
89594A1 |
FOLLOWER ASSEMBLY
|
1 |
|
| 20 |
681001 |
RING Thrust
|
1 |
|
| 21 |
88957T |
BEARING Ball
|
1 |
|
| 22 |
31534 |
O-RING
|
1 |
superseded
|
| 23 |
848840T1 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 24 |
817072 |
BEARING Roller
|
1 |
|
| 25 |
817071 |
RING Snap
|
1 |
|
| 26 |
815565 |
SEAL Oil
|
2 |
|
| 27 |
79448 |
RETAINER
|
1 |
superseded
|
| 28 |
30281 |
KEY
|
1 |
|
| 29 |
79447 |
TAB WASHER
|
1 |
|
| 3 |
789562 |
SHIFT CAM
|
1 |
|
| 30 |
423511 |
LOCKWASHER Toothed
|
1 |
|
| 31 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 32 |
832066A1 |
PLATE KIT Water Inlet
|
1 |
|
| 33 |
188642 |
SCREW (#8-32 x .500)
|
4 |
|
| 34 |
76214Q5 |
ANODE KIT
|
1 |
|
| 35 |
66024 |
SCREW (.437-14 x 1.75)
|
1 |
|
| 36 |
859116 |
NUT (.437-20)
|
2 |
|
| 37 |
30206 |
SCREW (.375-16 x 1.00) Stainless Steel
|
1 |
|
| 38 |
822836 |
WASHER (.445 x .805 x .108)
|
2 |
|
| 39 |
881866 |
FITTING
|
1 |
|
| 4 |
79911A1 |
ROD
|
1 |
|
| 40 |
85944975 |
TUBING (72.00 Inches Bulk) (Cut to 7 Inches)
|
1 |
|
| 5 |
79910 |
SPRING
|
2 |
|
| 6 |
78906 |
PIN
|
1 |
superseded
|
| 7 |
78910 |
WASHER
|
AR |
|
| 8 |
47397A1 |
SHIM SET
|
AR |
|
| 9 |
78172A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
|
