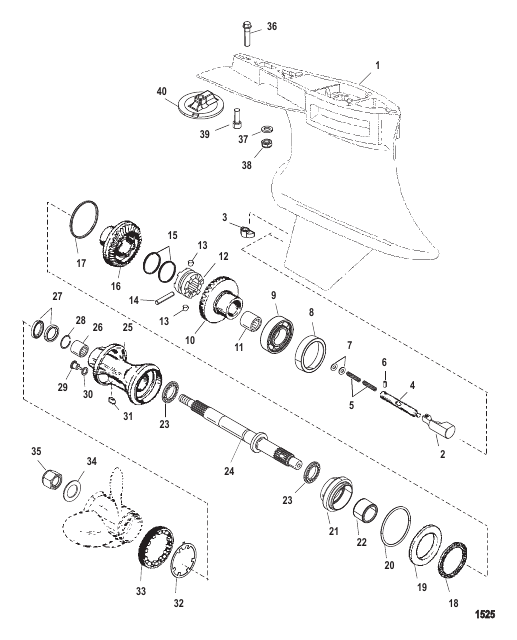

| # | Part Number | Description | Qty | Status |
|---|
| - |
840561T69 |
GEAR HOUSING ASSEMBLY Complete (Short)
|
1 |
disc.
|
| - |
840561T70 |
GEAR HOUSING ASSEMBLY Complete (Long)
|
1 |
disc.
|
| - |
840389K06 |
PROP HUB KIT
|
1 |
superseded
|
| - |
840382A02 |
SNUBBER STRIP KIT
|
1 |
|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| - |
90415A24 |
STUD KIT
|
1 |
disc.
|
| 1 |
849781A2 |
GEAR HOUSING ASSEMBLY Basic (Basic)(Does not Include Studs. Order Stud Kit 56-90415A24 Listed Below)
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE Reverse Gear (Part of 43-15845A2)
|
1 |
|
| 11 |
15844 |
BEARING ASSEMBLY Roller
|
1 |
|
| 12 |
42672T |
RATCHET
|
1 |
|
| 13 |
78909 |
PIN Detent
|
2 |
|
| 14 |
42671 |
PIN Cross
|
1 |
|
| 15 |
78962 |
SPRING
|
2 |
|
| 16 |
15845A2 |
GEAR SET (Includes Pinion and Reverse)
|
1 |
disc.
|
| 17 |
176151 |
SPACER SHIM (.125) (.125 Inch)
|
AR |
|
| 17 |
176152 |
SPACER SHIM (.127) (.127 Inch)
|
AR |
|
| 17 |
176153 |
SPACER SHIM (.129) (.129 Inch)
|
AR |
|
| 17 |
176154 |
SPACER SHIM (.131) (.131 Inch)
|
AR |
|
| 17 |
176155 |
SPACER SHIM (.133) (.133 Inch)
|
AR |
|
| 17 |
176156 |
SPACER SHIM (.135) (.135 Inch)
|
AR |
|
| 17 |
176157 |
SPACER SHIM (.137) (.137 Inch)
|
AR |
|
| 17 |
176158 |
SPACER SHIM (.139) (.139 Inch)
|
AR |
|
| 17 |
176159 |
SPACER SHIM (.141) (.141 Inch)
|
AR |
|
| 17 |
1761510 |
SPACER SHIM (.143) (.143 Inch)
|
AR |
|
| 17 |
1761511 |
SPACER SHIM (.145) (.145 Inch)
|
AR |
|
| 17 |
1761512 |
SPACER SHIM (.147) (.147 Inch)
|
AR |
|
| 17 |
1761513 |
SPACER SHIM (.149) (.149 Inch)
|
AR |
|
| 18 |
15841 |
BEARING Roller
|
1 |
|
| 19 |
17616 |
THRUST RING
|
1 |
|
| 2 |
89594A1 |
FOLLOWER ASSEMBLY
|
1 |
|
| 20 |
31534 |
O-RING
|
1 |
superseded
|
| 21 |
15838A2 |
ADAPTER ASSEMBLY Bearing
|
1 |
|
| 22 |
15843T |
BEARING Needle
|
1 |
|
| 23 |
15834 |
BEARING Thrust
|
2 |
|
| 24 |
840450A03 |
PROPELLER SHAFT KIT
|
1 |
|
| 25 |
847616T1 |
CARRIER Bearing
|
1 |
|
| 26 |
817072 |
BEARING Roller
|
1 |
|
| 27 |
815565 |
SEAL Oil
|
2 |
|
| 28 |
817071 |
RING Snap
|
1 |
|
| 29 |
67892A06 |
PLUG KIT Drain - Magnetic
|
1 |
superseded
|
| 3 |
789562 |
SHIFT CAM
|
1 |
|
| 30 |
191833 |
SEAL
|
1 |
superseded
|
| 31 |
30281 |
KEY
|
1 |
|
| 32 |
79447 |
TAB WASHER
|
1 |
|
| 33 |
158401 |
COVER
|
1 |
|
| 34 |
85344 |
WASHER (.750 Inside Diameter)
|
1 |
|
| 35 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 36 |
41350 |
SCREW (.437-14 x 2.50) Stainless Steel
|
1 |
|
| 37 |
822836 |
WASHER (.445 x .805 x .108)
|
2 |
|
| 38 |
859116 |
NUT (.437-20)
|
2 |
|
| 39 |
30206 |
SCREW (.375-16 x 1.00) Stainless Steel
|
1 |
|
| 4 |
79911A1 |
ROD
|
1 |
|
| 40 |
76214T3 |
ANODE
|
1 |
|
| 5 |
79910 |
SPRING
|
2 |
|
| 6 |
78906 |
PIN
|
1 |
superseded
|
| 7 |
78910 |
WASHER
|
2 |
|
| 8 |
14469T |
CUP Bearing
|
1 |
|
| 9 |
88957T |
BEARING Ball
|
1 |
|
