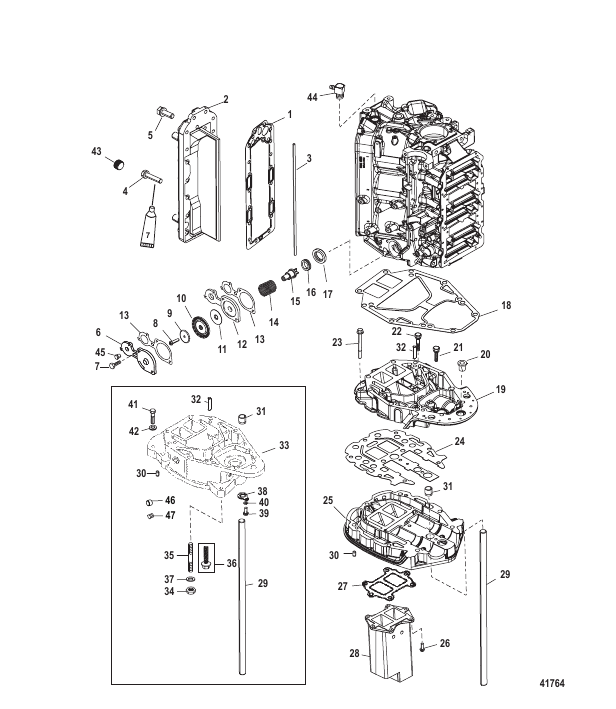

Exhaust Plate — Parts Catalog

Parts (53)

#	Part Number	Description	Qty	Status
-	817717A7	ПЛАСТИНА В СБОРЕ Удлинитель выхлопа (Short) PLATE ASSEMBLY Exhaust Extension (Short)	1
-	881805A01	КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine	1
-	883201A01	СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY	1	discontinued
1	190506	ПРОКЛАДКА GASKET	1
10	144791	ДИАФРАГМА DIAPHRAGM	1
11	16496	ОТРАЖАТЕЛЬ Вода DEFLECTOR Water	1
12	16497A1	ПЛАСТИНА PLATE	1
13	78690002	ПРОКЛАДКА GASKET	2
14	42996	ПРУЖИНА (Нержавеющая сталь) SPRING (Stainless Steel)	1
15	14480	ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET	1
16	64872	УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET	1
17	65848	КОРПУС CARRIER	1
18	8231422	ПРОКЛАДКА GASKET	1
19	850814T3	ПЛАСТИНА Удлинитель выхлопа (Long) PLATE Exhaust Extension (Long)	1	discontinued
2	828343A4	КОМПЛЕКТ ПЛАСТИН Отделитель выхлопа PLATE KIT Exhaust Divider	1	superseded
20	27132	ВТУЛКА BUSHING	1
21	66727	ВИНТ (0.312-18 x 1.250) (Long) SCREW (.312-18 x 1.250) (Long)	1
22	68783	ВИНТ (0.312-18 x 2.50) (Long) SCREW (.312-18 x 2.50) (Long)	1
23	66725	ВИНТ (0.375-16 x 3.50) (Long) SCREW (.375-16 x 3.50) (Long)	3	superseded
24	183076	ПРОКЛАДКА (Long) GASKET (Long)	1
25	18233A20	ПЛАСТИНА В СБОРЕ Корпус ведущего вала (Long) PLATE ASSEMBLY Driveshaft Housing (Long)	1
26	90192	ВИНТ (0.250-20 x 0.750), нержавеющая сталь (Long) SCREW (.250-20 x .750) Stainless Steel (Long)	6
27	782461	ПРОКЛАДКА (Long) GASKET (Long)	1
28	419424	УДЛИНИТЕЛЬ Выхлоп EXTENSION Exhaust	1	superseded
29	672951	ТРУБА Вода (Short) TUBE Water (Short)	1
29	8590971	ТРУБА Вода (Long) TUBE Water (Long)	1	superseded
3	814754	УПЛОТНЕНИЕ (12.50") SEAL (12.50 Inches)	1
30	43044	ШТИФТ Штифт – без отверстия (0.375 x 0.625) (Plate to Driveshaft Housing) PIN Dowel - Without Hole (.375 x .625) (Plate to Driveshaft Housing)	2
31	38970	УПЛОТНЕНИЕ SEAL	1
32	823106	ШТИФТ Штифт (0.875) (Plate to Powerhead) PIN Dowel (.875) (Plate to Powerhead)	2	superseded
33	NSS	НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PLATE, Exhaust Extension NOT SOLD SEPARATE PLATE, Exhaust Extension	1
34	30506	ГАЙКА (0.250-28) (Short) [1E050628] & Below NUT (.250-28) (Short) [1E050628] & Below	6
35	58893	ШПИЛЬКА (0.250-28 x 1.310) (Short) [1E050628] & Below STUD (.250-28 x 1.310) (Short) [1E050628] & Below	6	discontinued
36	8M0030694	ВИНТ (0.25-20 x 1.00) [1E050629] THRU [1E050890] SCREW (0.25-20 x 1.00) [1E050629] THRU [1E050890]	6
36	8M0047146	ВИНТ (0.25-20 x 1.50) [1E050891] & Up SCREW (0.25-20 x 1.50) [1E050891] & Up	6
37	20533	ШАЙБА (Short) [1E050890] & Below WASHER (Short) [1E050890] & Below	6
37	35044	ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь [1E050891] & Up WASHER (.281 x .625 x .065) Stainless Steel [1E050891] & Up	6
38	44260	ФИКСАТОР (Short) RETAINER (Short)	1
39	28635	ВИНТ (0.250-20 x 0.620), нержавеющая сталь (Short) SCREW (.250-20 x .620) Stainless Steel (Short)	1
4	8263561	ВИНТ И ШАЙБА (0.312-18 x 1.500) SCREW AND WASHER (.312-18 x 1.500)	17
40	26992	СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь (Short) LOCKWASHER (.250) Stainless Steel (Short)	1
41	91903	ВИНТ (0.437-14 x 1.750) (Short) SCREW (.437-14 x 1.750) (Short)	3
42	822836	ШАЙБА (0.445 x 0.805 x 0.108) (Short) WASHER (.445 x .805 x .108) (Short)	3
43	428611	ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14)	1	superseded
44	8603001	ФИТИНГ FITTING	1
45	36382	ФИТИНГ (0.250-18 x 0.62), латунь FITTING (.250-18 x .62) Brass	1
46	390721	ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass	2
47	36373	ПРОБКА (0.375-18), шестигранник – сталь PLUG (.375-18) Hex - Steel	1	superseded
5	881190	ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00)	2
6	687291	КРЫШКА Relief Valve COVER Relief Valve	1	superseded
7	31984	ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375)	4
8	69570	ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750)	1
9	76451	ШАЙБА WASHER	1
