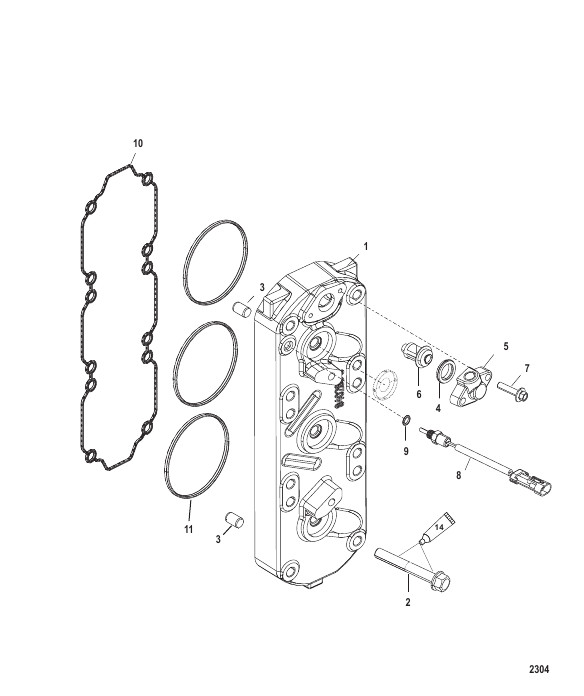

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 881805A01 | GASKET SET Engine | 1 | |
| - | 883201A01 | POWERHEAD ASSEMBLY | 1 | disc. |
| 1 | 840285T1 | CYLINDER HEAD (Port) | 1 | |
| 1 | 840286T1 | CYLINDER HEAD (Starboard) | 1 | |
| 10 | 8584521 | SEAL Cylinder Head | 2 | superseded |
| 11 | 8597721 | SEAL Cylinder Bore | 6 | |
| 2 | 878217 | SCREW (.375-16 x 2.750) | 24 | superseded |
| 3 | 63779 | PIN Dowel (.250 x .625) | 4 | |
| 4 | 62386001 | GASKET | 2 | superseded |
| 5 | 8307372 | COVER | 2 | superseded |
| 6 | 833072003 | THERMOSTAT 62°C (143°F) | 2 | |
| 7 | 82130025 | SCREW (M6 x 25) | 4 | |
| 8 | 885342001 | SENSOR ASSEMBLY | 2 | superseded |
| 9 | 888814 | O-RING (.351 x .072) | 2 | superseded |
