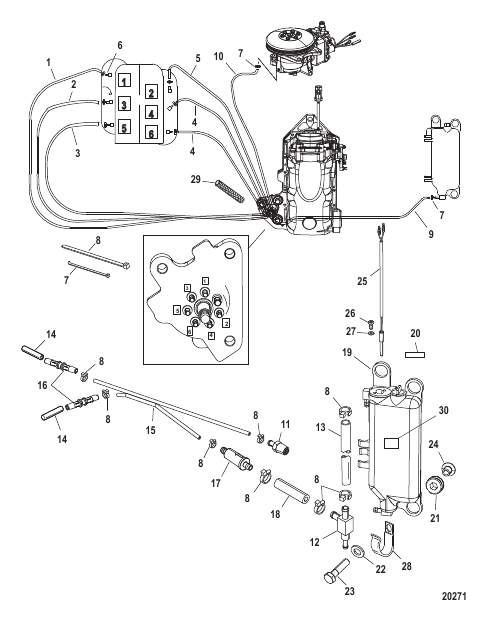

| # | Part Number | Description | Qty | Status |
|---|
| - |
883201A01 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
85606065 |
TUBING (38.00 Inches Bulk) (Cut to 24 Inches)
|
1 |
superseded
|
| 10 |
85583466 |
HOSE (40.00 Inches Bulk) (Cut to 32 Inches)
|
1 |
superseded
|
| 11 |
8781051 |
CHECK VALVE
|
1 |
|
| 12 |
424254 |
FITTING
|
1 |
superseded
|
| 13 |
830756109 |
HOSE (57.00 Inches Bulk) (Cut to 6 Inches)
|
1 |
superseded
|
| 14 |
NSS |
NOT SOLD SEPARATE Cap
|
2 |
|
| 15 |
875289 |
HOSE
|
1 |
|
| 16 |
858955 |
CONNECTOR
|
2 |
|
| 17 |
875284001 |
FILTER Oil - In Line
|
1 |
superseded
|
| 18 |
875283 |
HOSE (2.00 Inches)
|
1 |
|
| 19 |
833069T9 |
RESERVOIR ASSEMBLY
|
1 |
superseded
|
| 2 |
85606065 |
TUBING (38.00 Inches Bulk) (Cut to 18.5 Inches)
|
1 |
superseded
|
| 20 |
NSS |
NOT SOLD SEPARATE Decal-Warning-Oil Overflow
|
1 |
|
| 21 |
855362001 |
GROMMET
|
3 |
|
| 22 |
49436 |
WASHER
|
3 |
|
| 23 |
60411 |
SCREW (.312-18 x 1.250)
|
3 |
|
| 24 |
855364 |
BUSHING
|
3 |
|
| 25 |
856156A2 |
SWITCH ASSEMBLY
|
1 |
superseded
|
| 26 |
58376 |
SCREW (.164-18 x .375)
|
1 |
|
| 27 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel
|
1 |
|
| 28 |
814634 |
CLAMP
|
1 |
|
| 29 |
883357 |
CONDUIT
|
1 |
disc.
|
| 3 |
85606065 |
TUBING (38.00 Inches Bulk) (Cut to 15.5 Inches)
|
1 |
superseded
|
| 30 |
NSS |
NOT SOLD SEPARATE Decal-Oil Recommendation
|
1 |
|
| 4 |
85606065 |
TUBING (38.00 Inches Bulk) (Cut to 24.5 Inches)
|
2 |
superseded
|
| 5 |
85606065 |
TUBING (38.00 Inches Bulk) (Cut to 27 Inches)
|
1 |
superseded
|
| 6 |
858805 |
CHECK VALVE
|
6 |
|
| 7 |
69355 |
TIE STRAP (5.50 Inches)
|
AR |
superseded
|
| 8 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 8 |
56762 |
TIE STRAP (4.00 Inches)
|
AR |
|
| 9 |
892830053 |
HOSE (24.00 Inches Braided)
|
1 |
|
