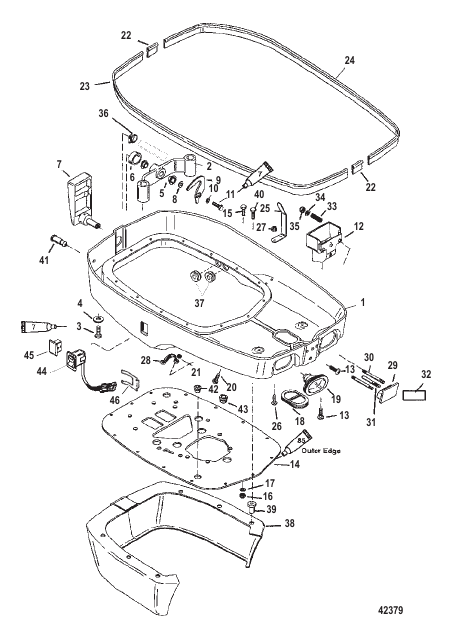

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
849479T7 |
BOTTOM PAN [1E050628] & Below
|
1 |
disc.
|
| 1 |
849479T08 |
BOTTOM PAN [1E050629] & Up
|
1 |
|
| 10 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
1 |
superseded
|
| 11 |
28635 |
SCREW (.250-20 x .620) Stainless Steel
|
1 |
|
| 12 |
849830T1 |
LATCH
|
1 |
|
| 13 |
849011 |
SCREW (.250-20 x .750)
|
2 |
|
| 14 |
8404031 |
PLATE [1E050628] & Below
|
1 |
superseded
|
| 14 |
8M0042805 |
PLATE [1E050629] & Up
|
1 |
|
| 15 |
38601 |
SCREW (.250-28 x 1.250)
|
14 |
|
| 16 |
826709109 |
NUT (.250-28) Stainless Steel
|
14 |
|
| 17 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
14 |
superseded
|
| 18 |
849750 |
GROMMET
|
1 |
|
| 19 |
8177133 |
GROMMET
|
2 |
|
| 2 |
848810 |
BRACKET Latch
|
1 |
|
| 20 |
690201 |
SCREW (#10-32 x .875)
|
2 |
|
| 21 |
826709106 |
NUT (#10-32) Stainless Steel
|
2 |
superseded
|
| 22 |
849767 |
SEAL
|
2 |
superseded
|
| 23 |
849766 |
SEAL
|
1 |
superseded
|
| 24 |
849765 |
SEAL
|
1 |
superseded
|
| 25 |
8496191 |
BRACE
|
2 |
|
| 26 |
849011 |
SCREW (.250-20 x .750)
|
4 |
|
| 27 |
8267098 |
NUT (.250-20) Stainless Steel
|
4 |
|
| 28 |
88621 |
RETAINER
|
1 |
disc.
|
| 29 |
849831A1 |
LATCH HANDLE ASSEMBLY
|
1 |
superseded
|
| 3 |
28782 |
SCREW (.312-18 x .880) Stainless Steel
|
2 |
|
| 30 |
843118 |
STUD (.250-20 x 3.45)
|
2 |
|
| 31 |
849832 |
PIN
|
1 |
|
| 32 |
NSS |
NOT SOLD SEPARATE Decal
|
1 |
|
| 33 |
842776 |
SPRING (.420 Outside Diameter)
|
2 |
|
| 34 |
846673 |
WASHER (.265 x .500 x .060) Stainless Steel
|
2 |
|
| 35 |
8267098 |
NUT (.250-20) Stainless Steel
|
2 |
|
| 36 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 37 |
840404 |
GROMMET
|
2 |
superseded
|
| 38 |
840228A1 |
SKIRT [1E050628] & Below
|
1 |
disc.
|
| 39 |
849000 |
NUT
|
6 |
|
| 4 |
814806 |
WASHER (.344 x .688 x .065) Stainless Steel
|
2 |
superseded
|
| 40 |
F2030 |
SCREW (.250-20 x 1.250) Stainless Steel
|
6 |
|
| 41 |
76256 |
NOZZLE
|
1 |
disc.
|
| 42 |
12602002 |
GROMMET
|
1 |
|
| 43 |
57009001 |
GROMMET
|
1 |
|
| 44 |
896620001 |
SWITCH Trim [1E050628] & Below
|
1 |
superseded
|
| 45 |
812830T01 |
PLUG Trim Switch [1E050629] & Up
|
1 |
|
| 46 |
8M0032848 |
RETAINER Switch [1E050629] & Up
|
|
|
| 5 |
812707 |
BUSHING
|
2 |
|
| 6 |
848985 |
SEAL
|
1 |
|
| 7 |
848815T1 |
HANDLE
|
1 |
|
| 8 |
F2047 |
WASHER Wave
|
1 |
|
| 9 |
889566 |
CAM
|
1 |
superseded
|
