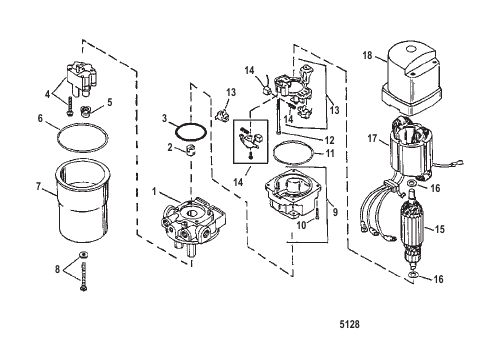

| # | Part Number | Description | Qty | Status |
|---|
| - |
846859A1 |
PUMP ASSEMBLY Hydraulic
|
1 |
superseded
|
| - |
891736T |
MOTOR ASSEMBLY
|
1 |
|
| - |
812498A1 |
VALVE KIT Relief
|
1 |
|
| 1 |
811491 |
ADAPTER
|
1 |
superseded
|
| 10 |
891741 |
SCREW
|
4 |
disc.
|
| 11 |
891740 |
O-RING
|
1 |
|
| 12 |
891739 |
SCREW
|
2 |
disc.
|
| 13 |
891738 |
HOLDER ASSEMBLY
|
1 |
|
| 14 |
891737 |
BRUSH KIT
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Armature
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Thrust Washer
|
2 |
|
| 17 |
NSS |
NOT SOLD SEPARATE Field and Frame
|
1 |
|
| 18 |
NSS |
NOT SOLD SEPARATE Housing
|
1 |
|
| 2 |
803852 |
COUPLING
|
1 |
|
| 3 |
89498 |
O-RING
|
1 |
|
| 4 |
811492T |
PUMP ASSEMBLY (INCLUDES SCREWS)
|
1 |
|
| 5 |
89496 |
FILTER
|
2 |
|
| 6 |
89497 |
O-RING
|
1 |
|
| 7 |
41219T |
RESERVOIR
|
1 |
|
| 8 |
811493 |
SCREW KIT
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE End Frame
|
1 |
|
