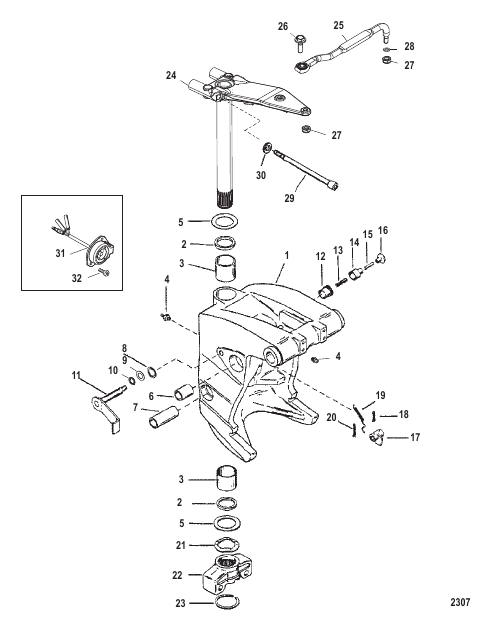

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 818810A14 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | superseded |
| 10 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) Use where Applicable O-RING (.364. x .070) Use where Applicable |
2 | |
| 11 | 85030A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона Port-Use where Applicable LEVER ASSEMBLY Tilt Lock Port-Use where Applicable |
1 | disc. |
| 11 | 85028A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона Starboard-Use where Applicable LEVER ASSEMBLY Tilt Lock Starboard-Use where Applicable |
1 | disc. |
| 12 | 86600 |
ВТУЛКА Use where Applicable BUSHING Use where Applicable |
1 | disc. |
| 13 | 85367 |
ПРУЖИНА Use where Applicable SPRING Use where Applicable |
1 | disc. |
| 14 | 41052 |
ПЛУНЖЕР Use where Applicable PLUNGER Use where Applicable |
1 | disc. |
| 15 | 88876 |
ШПИЛЬКА Use where Applicable STUD Use where Applicable |
1 | disc. |
| 16 | 86603 |
РУЧКА Use where Applicable KNOB Use where Applicable |
1 | disc. |
| 17 | 864751 |
СОЕДИНИТЕЛЬНАЯ МУФТА Use where Applicable COUPLING Use where Applicable |
1 | |
| 18 | 69745 |
ШТИФТ Ролик Use where Applicable PIN Roll Use where Applicable |
2 | |
| 19 | 88049 |
ПРУЖИНА Use where Applicable SPRING Use where Applicable |
1 | |
| 2 | 847729 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 20 | 93861 |
ШПЛИНТ Use where Applicable COTTER PIN Use where Applicable |
1 | disc. |
| 21 | 78854 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 22 | 86580F4 |
ВИЛКА Нижняя часть YOKE Bottom |
1 | disc. |
| 23 | 848125 |
КОЛЬЦО Стопорное кольцо – спиральный фиксатор RING Retaining - Spiral Lock |
2 | |
| 24 | 8407871 |
ШАРНИРНЫЙ ПАЛЕЦ SWIVEL PIN |
1 | superseded |
| 25 | 92876A10 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ LINK ROD ASSEMBLY |
1 | superseded |
| 26 | 849838 |
ВИНТ (0.375-24 x 1.250) SCREW (.375-24 x 1.250) |
1 | |
| 27 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь NUT (.375-24) Stainless Steel |
2 | superseded |
| 28 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
2 | |
| 29 | 132121 |
ВИНТ SCREW |
2 | |
| 3 | 847726 |
ПОДШИПНИК BEARING |
2 | |
| 30 | 816056 |
ШАЙБА WASHER |
2 | |
| 31 | 841198A1 |
ДАТЧИК В СБОРЕ Дифферент SENSOR ASSEMBLY Trim |
1 | |
| 32 | 852453 |
ВИНТ (№10-24 x 0.560) SCREW (#10-24 x .560) |
2 | |
| 4 | 74036 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 5 | 847728 |
ПОДШИПНИК BEARING |
2 | |
| 6 | 82203516 |
ПОДШИПНИК (1 Inch)(Starboard) BEARING (1 Inch)(Starboard) |
1 | |
| 7 | 82203540 |
ПОДШИПНИК (2-1/2 Inch) BEARING (2-1/2 Inch) |
2 | |
| 8 | 85023 |
УПЛОТНЕНИЕ Масло Use where Applicable SEAL Oil Use where Applicable |
2 | |
| 9 | 87161 |
ШАЙБА Use where Applicable WASHER Use where Applicable |
2 |
