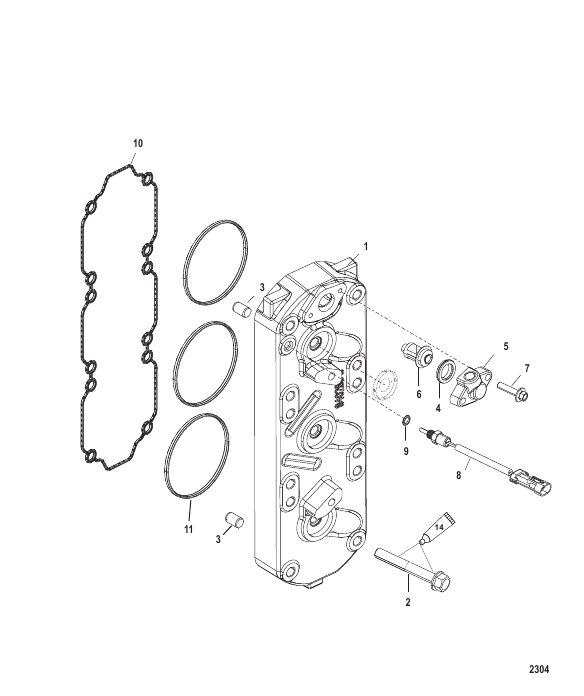

Cylinder Head
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 881805A01 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | |
| - | 883201A01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 840285T1 |
ГОЛОВКА ЦИЛИНДРА (PORT) CYLINDER HEAD (PORT) |
1 | |
| 1 | 840286T1 |
ГОЛОВКА ЦИЛИНДРА (STARBOARD) CYLINDER HEAD (STARBOARD) |
1 | |
| 10 | 8584521 |
УПЛОТНЕНИЕ Cylinder Head SEAL Cylinder Head |
2 | superseded |
| 11 | 8597721 |
УПЛОТНЕНИЕ Cylinder Bore SEAL Cylinder Bore |
6 | |
| 2 | 878217 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
24 | superseded |
| 3 | 63779 |
ШТИФТ Штифт (0.250 x 0.625) PIN Dowel (.250 x .625) |
4 | |
| 4 | 62386 |
ПРОКЛАДКА [0T997973] & Below GASKET [0T997973] & Below |
2 | superseded |
| 4 | 62386001 |
ПРОКЛАДКА [0T997974] & Up GASKET [0T997974] & Up |
2 | superseded |
| 5 | 8307372 |
КРЫШКА COVER |
2 | superseded |
| 6 | 833072 |
ТЕРМОСТАТ 62° Цельсия (143° Фаренгейта) [0T997973] & Below THERMOSTAT 62° Celsius (143° Fahrenheit) [0T997973] & Below |
2 | superseded |
| 6 | 833072003 |
ТЕРМОСТАТ 62°C (143°F) [0T997974] & Up THERMOSTAT 62°C (143°F) [0T997974] & Up |
2 | |
| 7 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
4 | |
| 8 | 885342001 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
2 | superseded |
| 9 | 888814 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.351 x 0.072) O-RING (.351 x .072) |
2 | superseded |
