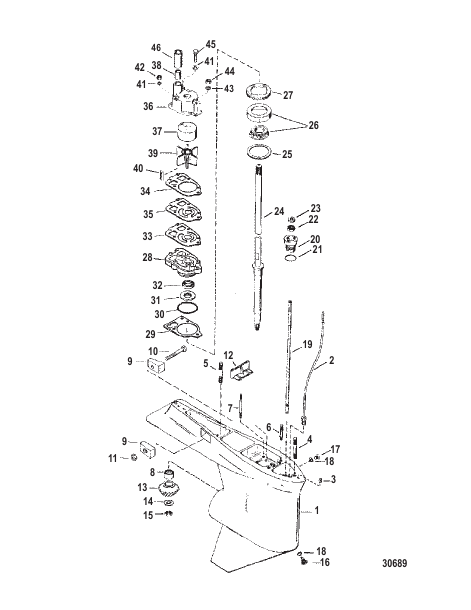

| # | Part Number | Description | Qty | Status |
|---|
| - |
827214T23 |
GEAR HOUSING ASSEMBLY Complete
|
1 |
disc.
|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| - |
881805A01 |
GASKET SET Engine
|
1 |
|
| 1 |
827214T16 |
GEAR HOUSING ASSEMBLY Basic (BASIC)
|
1 |
superseded
|
| 10 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 11 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 12 |
67891 |
FILLER BLOCK
|
1 |
superseded
|
| 13 |
NSS |
NOT SOLD SEPARATE Pinion Gear (Part of 43-44104A7)
|
1 |
|
| 14 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 15 |
35921 |
NUT (.625-18)
|
1 |
|
| 16 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 17 |
79953Q2 |
SCREW KIT (.375-16 x .250) Drain
|
1 |
superseded
|
| 18 |
191832 |
WASHER
|
2 |
superseded
|
| 19 |
789022 |
SHIFT SHAFT
|
1 |
|
| 2 |
85822A10 |
CONNECTOR ASSEMBLY
|
1 |
|
| 20 |
77631A2 |
BUSHING ASSEMBLY
|
1 |
|
| 21 |
25439 |
O-RING (.862 x .103)
|
1 |
|
| 22 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 23 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 24 |
848449A5 |
DRIVESHAFT ASSEMBLY
|
1 |
superseded
|
| 25 |
42637A1 |
SHIM SET
|
AR |
disc.
|
| 26 |
36387A1 |
BEARING ASSEMBLY Roller/Cup
|
1 |
superseded
|
| 27 |
8245191 |
RETAINER
|
1 |
|
| 28 |
44292A3 |
BASE ASSEMBLY Water Pump
|
1 |
|
| 29 |
426311 |
GASKET
|
1 |
superseded
|
| 3 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 30 |
90011 |
O-RING (2.175 x .175)
|
1 |
superseded
|
| 31 |
89238 |
SEAL Oil
|
1 |
|
| 32 |
16977 |
SEAL Oil
|
1 |
|
| 33 |
18051 |
GASKET (LOWER)
|
1 |
|
| 34 |
858524 |
GASKET (UPPER)
|
1 |
|
| 35 |
32435 |
FACE PLATE
|
1 |
superseded
|
| 36 |
96148T1 |
BODY ASSEMBLY Water Pump
|
1 |
|
| 37 |
48752T |
INSERT
|
1 |
|
| 38 |
38970 |
SEAL
|
1 |
|
| 39 |
89984T4 |
IMPELLER
|
1 |
|
| 4 |
786382 |
STUD (.437-14/.437-20 x 3.120)
|
1 |
|
| 40 |
56654 |
KEY
|
1 |
superseded
|
| 41 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 42 |
8267119 |
NUT (.250-28)
|
2 |
|
| 43 |
36001 |
WASHER
|
1 |
|
| 44 |
13436 |
NUT
|
1 |
|
| 45 |
96411 |
SCREW (#14-8 x 2.25)
|
1 |
superseded
|
| 46 |
29804T |
SLEEVE
|
1 |
|
| 5 |
579203 |
STUD (.437-14/.437-20 x 2.060)
|
2 |
superseded
|
| 6 |
562972 |
STUD (.312-18/.324-24 x 3.380)
|
1 |
superseded
|
| 7 |
30667 |
STUD (.250-20/.250-28 x 3.125)
|
2 |
superseded
|
| 8 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
| 9 |
826134Q |
ANODE
|
2 |
|
