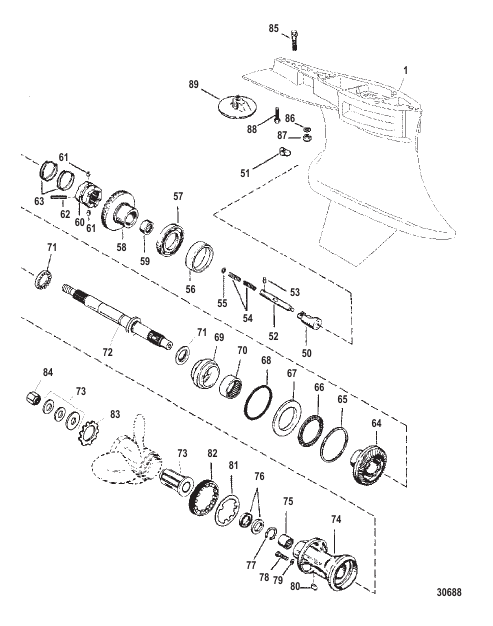

| # | Part Number | Description | Qty | Status |
|---|
| - |
840561T69 |
GEAR HOUSING ASSEMBLY Complete (SHORT)
|
1 |
disc.
|
| - |
840561T70 |
GEAR HOUSING ASSEMBLY Complete (LONG)
|
1 |
disc.
|
| - |
840382A1 |
SNUBBER STRIP KIT
|
1 |
superseded
|
| - |
89238A3 |
SEAL KIT Gear Housing
|
1 |
|
| - |
90415A24 |
STUD KIT
|
1 |
disc.
|
| 1 |
849781A2 |
GEAR HOUSING ASSEMBLY Basic (BASIC)(See Note)
|
1 |
superseded
|
| 50 |
89594A1 |
FOLLOWER ASSEMBLY
|
1 |
|
| 51 |
789562 |
SHIFT CAM
|
1 |
|
| 52 |
79911A1 |
ROD
|
1 |
|
| 53 |
78906 |
PIN
|
1 |
superseded
|
| 54 |
79910 |
SPRING
|
2 |
|
| 55 |
78910 |
WASHER
|
AR |
|
| 56 |
14469T |
CUP Bearing
|
1 |
|
| 57 |
88957T |
BEARING Ball
|
1 |
|
| 58 |
NSS |
NOT SOLD SEPARATE Reverse Gear (Part of 43015845A2)(1.87:1 Gear Ratio)
|
1 |
|
| 59 |
15844 |
BEARING ASSEMBLY Roller
|
1 |
|
| 60 |
42672T |
RATCHET
|
1 |
|
| 61 |
78909 |
PIN Detent
|
2 |
|
| 62 |
42671 |
PIN Cross
|
1 |
|
| 63 |
78962 |
SPRING
|
2 |
|
| 64 |
15845A2 |
GEAR SET (1.87:1 Gear Ratio)(Includes Pinion and Reverse)
|
1 |
disc.
|
| 65 |
176151 |
SPACER SHIM (.125)
|
AR |
|
| 65 |
176152 |
SPACER SHIM (.127)
|
AR |
|
| 65 |
176153 |
SPACER SHIM (.129)
|
AR |
|
| 65 |
176154 |
SPACER SHIM (.131)
|
AR |
|
| 65 |
176155 |
SPACER SHIM (.133)
|
AR |
|
| 65 |
176156 |
SPACER SHIM (.135)
|
AR |
|
| 65 |
176157 |
SPACER SHIM (.137)
|
AR |
|
| 65 |
176158 |
SPACER SHIM (.139)
|
AR |
|
| 65 |
176159 |
SPACER SHIM (.141)
|
AR |
|
| 65 |
1761510 |
SPACER SHIM (.143)
|
AR |
|
| 65 |
1761511 |
SPACER SHIM (.145)
|
AR |
|
| 65 |
1761512 |
SPACER SHIM (.147)
|
AR |
|
| 65 |
1761513 |
SPACER SHIM (.149)
|
AR |
|
| 66 |
15841 |
BEARING Roller
|
1 |
|
| 67 |
17616 |
THRUST RING
|
1 |
|
| 68 |
31534 |
O-RING
|
1 |
superseded
|
| 69 |
15838A2 |
ADAPTER ASSEMBLY Bearing
|
1 |
|
| 70 |
15843T |
BEARING Needle
|
1 |
|
| 71 |
15834 |
BEARING Thrust
|
2 |
|
| 72 |
840450A2 |
PROPELLLER SHAFT
|
1 |
superseded
|
| 73 |
840389K5 |
HUB KIT
|
1 |
superseded
|
| 74 |
847616T1 |
CARRIER Bearing
|
1 |
|
| 75 |
817072 |
BEARING Roller
|
1 |
|
| 76 |
815565 |
SEAL Oil
|
2 |
|
| 77 |
817071 |
RING Snap
|
1 |
|
| 78 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 79 |
191832 |
WASHER
|
1 |
superseded
|
| 80 |
30281 |
KEY
|
1 |
|
| 81 |
79447 |
TAB WASHER
|
1 |
|
| 82 |
158401 |
COVER
|
1 |
|
| 83 |
423511 |
LOCKWASHER Toothed
|
1 |
|
| 84 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 85 |
41350 |
SCREW (.437-14 x 2.50) Stainless Steel
|
1 |
|
| 86 |
822836 |
WASHER (.445 x .805 x .108)
|
2 |
|
| 87 |
859116 |
NUT (.437-20)
|
2 |
|
| 88 |
30206 |
SCREW (.375-16 x 1.00) Stainless Steel
|
1 |
|
| 89 |
76214T3 |
ANODE
|
1 |
|
