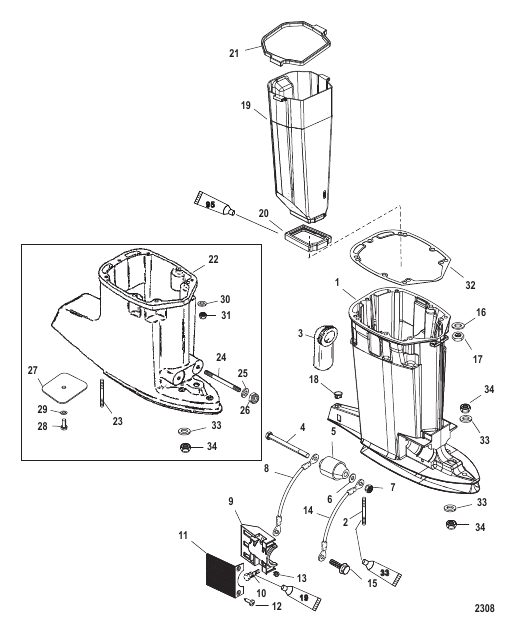

DRIVESHAFT HOUSING
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 881805A01 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | |
| 1 | 8343T10 |
КОРПУС В СБОРЕ Ведущий вал – черный – длинный (LONG) HOUSING ASSEMBLY Driveshaft - Black - Long (LONG) |
1 | |
| 10 | 66727 |
ВИНТ (0.312-18 x 1.250) (LONG) SCREW (.312-18 x 1.250) (LONG) |
4 | |
| 11 | 67077T |
КРЫШКА Черный (LONG) COVER Black (LONG) |
2 | superseded |
| 12 | 88417 |
ВИНТ (№12-24 x 0.620) (LONG) SCREW (#12-24 x .620) (LONG) |
4 | |
| 13 | 35521 |
ГАЙКА (LONG) NUT (LONG) |
4 | |
| 14 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление (LONG) CABLE ASSEMBLY Ground (LONG) |
1 | |
| 15 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь (LONG) SCREW (.250-20 x .500) Stainless Steel (LONG) |
1 | |
| 16 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) (LONG) WASHER (.401 x .745 x .097) (LONG) |
10 | |
| 17 | 46335 |
ГАЙКА (.375-24) (LONG) NUT (.375-24) (LONG) |
10 | |
| 18 | 64649 |
ПРОБКА (LONG) PLUG (LONG) |
1 | |
| 19 | 18276 |
ТРУБА Выхлоп (LONG) TUBE Exhaust (LONG) |
1 | superseded |
| 2 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) (LONG) STUD (.437-14/.437-20 x 2.812) (LONG) |
2 | |
| 20 | 66350 |
УПЛОТНЕНИЕ (LOWER) (LONG) SEAL (LOWER) (LONG) |
1 | superseded |
| 21 | 177261 |
УПЛОТНЕНИЕ (UPPER) (LONG) SEAL (UPPER) (LONG) |
1 | superseded |
| 22 | 818900T24 |
КОРПУС Карданный вал (SHORT) HOUSING Driveshaft (SHORT) |
1 | discontinued |
| 23 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) (SHORT) STUD (.437-14/.437-20 x 2.812) (SHORT) |
2 | |
| 24 | 818908 |
ШПИЛЬКА (0.500-13/0.500-20 x 4.120) (SHORT) STUD (.500-13/.500-20 x 4.120) (SHORT) |
2 | |
| 25 | 816056 |
ШАЙБА (SHORT) WASHER (SHORT) |
2 | |
| 26 | 82670817 |
ГАЙКА (.500-20) (SHORT) NUT (.500-20) (SHORT) |
2 | superseded |
| 27 | 8189091 |
ПЛАСТИНА Блокировка выхлопа (SHORT) PLATE Exhaust Blockoff (SHORT) |
1 | |
| 28 | 39349 |
ВИНТ (0.312-18 x 0.750), нержавеющая сталь (SHORT) SCREW (.312-18 x .750) Stainless Steel (SHORT) |
1 | |
| 29 | 847539 |
ШАЙБА (SHORT) WASHER (SHORT) |
1 | |
| 3 | 849330 |
ЧЕХОЛ Выхлоп холостого хода (LONG) BOOT Idle Exhaust (LONG) |
1 | discontinued |
| 30 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) (SHORT) WASHER (.401 x .745 x .097) (SHORT) |
10 | |
| 31 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь (HEIGHT = .281)(SHORT) NUT (.375-24) Stainless Steel (HEIGHT = .281)(SHORT) |
2 | superseded |
| 31 | 82671013 |
ГАЙКА (0.375-24), нержавеющая сталь (HEIGHT = .468)(SHORT) NUT (.375-24) Stainless Steel (HEIGHT = .468)(SHORT) |
8 | |
| 32 | 991734 |
ПРОКЛАДКА (LONG) GASKET (LONG) |
1 | |
| 33 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) WASHER (.445 x .805 x .108) |
3 | |
| 34 | 859116 |
ГАЙКА (0.437-20) NUT (.437-20) |
3 | |
| 4 | 63474 |
ВИНТ (0.500-20 x 6.00) (LONG) SCREW (.500-20 x 6.00) (LONG) |
2 | superseded |
| 5 | 816054T1 |
КРЕПЛЕНИЕ Нижняя часть (LONG) MOUNT Lower (LONG) |
2 | discontinued |
| 6 | 816056 |
ШАЙБА (LONG) WASHER (LONG) |
4 | |
| 7 | 82670817 |
ГАЙКА (.500-20) (LONG) NUT (.500-20) (LONG) |
2 | superseded |
| 8 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление (LONG) CABLE ASSEMBLY Ground (LONG) |
1 | |
| 9 | 67076 |
ЗАЖИМ (LONG) CLAMP (LONG) |
2 | superseded |
