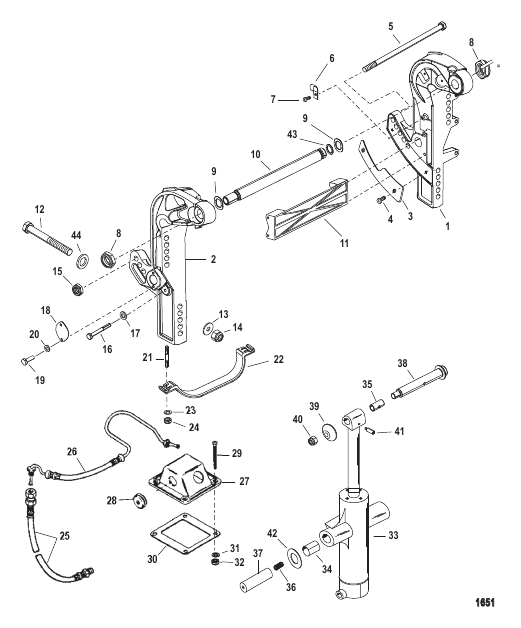

| # | Part Number | Description | Qty | Status |
|---|
| - |
79879A1 |
REPAIR KIT (FOR TRIM CYLINDERS)
|
1 |
|
| 1 |
847800A1 |
BRACKET ASSEMBLY Transom (PORT)
|
1 |
disc.
|
| 10 |
99170A2 |
TUBE KIT Tilt
|
1 |
disc.
|
| 11 |
85035T |
SPACER
|
1 |
superseded
|
| 12 |
677551 |
SCREW (.500-20 x 4.500)
|
4 |
superseded
|
| 13 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 14 |
82671117 |
NUT (.500-20)
|
4 |
|
| 15 |
82671317 |
NUT (.500-20)
|
1 |
|
| 16 |
70732 |
SCREW (.250-20 x 2.00)
|
4 |
|
| 17 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
superseded
|
| 18 |
85026T |
PLATE
|
2 |
|
| 19 |
28636 |
SCREW (.250-20 x .750)
|
4 |
|
| 2 |
847801A1 |
BRACKET ASSEMBLY Transom (STARBOARD)
|
1 |
superseded
|
| 20 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
superseded
|
| 21 |
54343 |
STUD (.312-24 x 1.380)
|
4 |
superseded
|
| 22 |
89949A1 |
PLATE ASSEMBLY
|
1 |
|
| 23 |
847539 |
WASHER
|
4 |
|
| 24 |
82670911 |
NUT (.312-24) Stainless Steel
|
4 |
|
| 25 |
89024 |
HOSE Hydraulic (PORT)
|
1 |
|
| 25 |
89023 |
HOSE Hydaulic (STARBOARD)
|
1 |
|
| 26 |
96993 |
HOSE Hydraulic (PORT)
|
1 |
|
| 26 |
96994 |
HOSE Hydraulic (STARBOARD)
|
1 |
disc.
|
| 27 |
87871 |
COVER
|
1 |
superseded
|
| 28 |
45507 |
GROMMET
|
1 |
|
| 29 |
32866 |
SCREW (#10-32 x 2.00) Stainless Steel
|
4 |
|
| 3 |
847798A1 |
WEAR PAD KIT
|
1 |
superseded
|
| 30 |
87775 |
GASKET
|
1 |
|
| 31 |
20878 |
WASHER
|
4 |
|
| 32 |
29488 |
NUT (#10-32)
|
4 |
superseded
|
| 33 |
79610T29 |
TRIM CYLINDER (Use with Set Screw)
|
1 |
disc.
|
| 33 |
79610A21 |
TRIM CYLINDER (Use without Set Screw)
|
1 |
superseded
|
| 34 |
847724 |
BUSHING
|
2 |
|
| 35 |
841223 |
BEARING (Use with Set Screw)
|
1 |
|
| 36 |
30316 |
SPRING
|
2 |
|
| 37 |
85020T |
PIN Pivot
|
2 |
|
| 38 |
841199 |
PIN Trim (Use with Set Screw)
|
1 |
|
| 38 |
8220752 |
PIN Trim (Use without Set Screw)
|
1 |
|
| 39 |
822076 |
RETAINER
|
1 |
|
| 4 |
86843 |
SCREW (#10-24 x .500)
|
4 |
|
| 40 |
82671317 |
NUT (.500-20)
|
1 |
|
| 41 |
8071791 |
SET SCREW (.250-20 x .820)
|
1 |
|
| 42 |
85022 |
WASHER (2.00 x 1.06 x .060)
|
2 |
|
| 43 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 44 |
54012 |
WASHER (.530 x .870 x .105) Stainless Steel
|
4 |
superseded
|
| 5 |
87180 |
BOLT (.500-20 x 11.00)
|
1 |
|
| 6 |
88512 |
CLAMP
|
4 |
|
| 6 |
75275 |
CLAMP
|
2 |
|
| 7 |
88829 |
SCREW (#10-24 x .500)
|
6 |
|
| 8 |
858869 |
NUT (.875-14)
|
1 |
|
| 8 |
859133 |
NUT (1.00-14)
|
1 |
disc.
|
| 9 |
88750 |
WASHER Wave (1.62 x 1.05)
|
2 |
|
