| # | Part Number | Description | Qty | Status |
|---|
| - |
855633T22 |

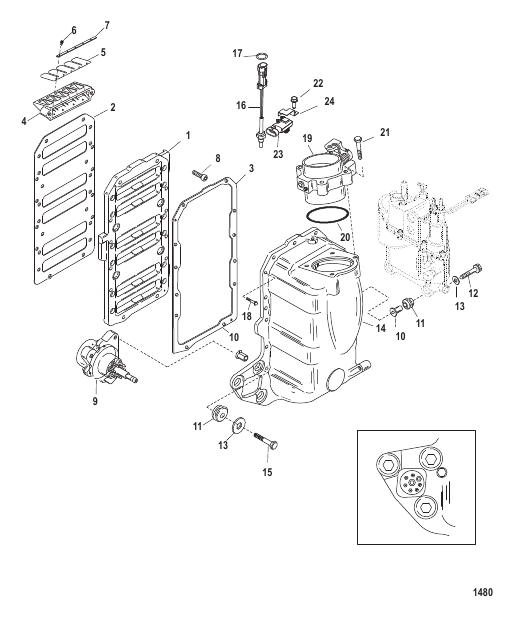

AIR HANDLER ASSEMBLY
|
1 |
superseded
|
| - |
883201A01 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
840396A2 |
ADAPTER PLATE KIT
|
1 |
superseded
|
| 10 |
855364 |
BUSHING
|
6 |
|
| 11 |
855362 |
GROMMET
|
6 |
superseded
|
| 12 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 13 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
6 |
|
| 14 |
850248T03 |
PLENUM KIT Air
|
1 |
disc.
|
| 15 |
81893430 |
SCREW (M8 x 30)
|
3 |
disc.
|
| 16 |
858535 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 17 |
627021 |
O-RING (.301 x .070)
|
1 |
|
| 18 |
4001987 |
SCREW (M4 x 16)
|
2 |
|
| 19 |
855422A1 |
THROTTLE BODY KIT
|
1 |
disc.
|
| 2 |
840484 |
GASKET
|
1 |
|
| 20 |
855423 |
O-RING
|
1 |
|
| 21 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 22 |
1993716 |
SCREW (M6 x 16)
|
1 |
|
| 23 |
854445 |
SENSOR MAP
|
1 |
|
| 24 |
804873 |
BRACKET
|
1 |
superseded
|
| 3 |
840485 |
GASKET
|
1 |
|
| 4 |
840805T2 |
REED BLOCK
|
6 |
|
| 5 |
840402A1 |
REED PETAL KIT (12 reeds per kit)
|
1 |
disc.
|
| 6 |
849038 |
SCREW (M3 x 5)
|
60 |
|
| 7 |
NSS |
NOT SOLD SEPARATE REED PLATE
|
2 |
|
| 8 |
55715 |
SCREW (.250-20 x .880)
|
12 |
|
| 9 |
857149T2 |
PUMP ASSEMBLY Oil
|
1 |
superseded
|
