Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke DFI (OptiMax) / 200 HP XS 6 CYL (2.5L) / [0T235000 THRU 0T818180] - USA - Cat.# 90-88184401 / BOTTOM COWL

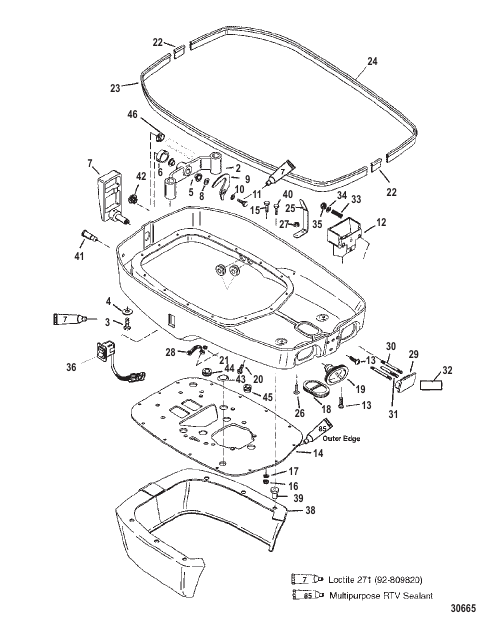

BOTTOM COWL

Parts (46)

#Part NumberDescriptionQtyStatus
1 849479T7 BOTTOM PAN 1 disc.
10 4002316   WASHER (6.60 X 17.0 X 1.5SS) 1 superseded
11 28635   SCREW (.250-20 x .620) Stainless Steel 1
12 849830T1   LATCH 1
13 849011   SCREW (.250-20 x .750) 2
14 840403T1   PLATE 1 superseded
15 38601   SCREW (.250-28 x 1.250) 14
16 826709109   NUT (.250-28) Stainless Steel 14
17 29245   WASHER (.281 x .500 x .060) Stainless Steel 14 superseded
18 849750   GROMMET 1
19 8177133   GROMMET 2
2 848810   BRACKET Latch 1
20 690201   SCREW (#10-32 x .875) 2
21 29488   NUT (#10-32) 2 superseded
22 849767   SEAL 2 superseded
23 849766   SEAL 1 superseded
24 849765   SEAL 1 superseded
25 8496191   BRACE 2
26 849011   SCREW (.250-20 x .750) 4
27 8267098   NUT (.250-20) Stainless Steel 4
28 88621   RETAINER 1 disc.
29 849831A1   LATCH HANDLE ASSEMBLY 1 superseded
3 28782   SCREW (.312-18 x .880) Stainless Steel 2
30 849833     STUD (.250-20 x 3.310) 2 superseded
31 849832     PIN 1
32 NSS     NOT SOLD SEPARATE Decal 1
33 849837   SPRING (.360 Outside Diameter) 2 disc.
34 846673   WASHER (.265 x .500 x .060) Stainless Steel 2
35 8267098   NUT (.250-20) Stainless Steel 2
36 8569901   SWITCH Trim 1 superseded
37 840404   GROMMET 2 superseded
38 840228T1 SKIRT 1 superseded
39 849000 NUT 6
4 814806   WASHER (.344 x .688 x .065) Stainless Steel 2 superseded
40 F2030 SCREW (.250-20 x 1.250) Stainless Steel 6
41 76256 NOZZLE 1 disc.
42 32298 PLUG (SHORT) 1 disc.
43 89774 PLUG (SHORT) 1 disc.
44 126021 GROMMET (LONG) 1 superseded
45 57009 GROMMET (LONG) 1 superseded
46 816311T TIE STRAP (8.00 Inches) 1
5 812707   BUSHING 2
6 848985   SEAL 1
7 848815T1   HANDLE 1
8 F2047   WASHER Wave 1
9 F481777   CAM Latch Shaft 1 superseded
