| # | Part Number | Description | Qty | Status |
|---|
| - |
840323A1 |
DECAL SET (BASIC)
|
1 |
disc.
|
| - |
840323A18 |
DECAL SET (PATCH)
|
1 |
|
| 1 |
849203T23 |

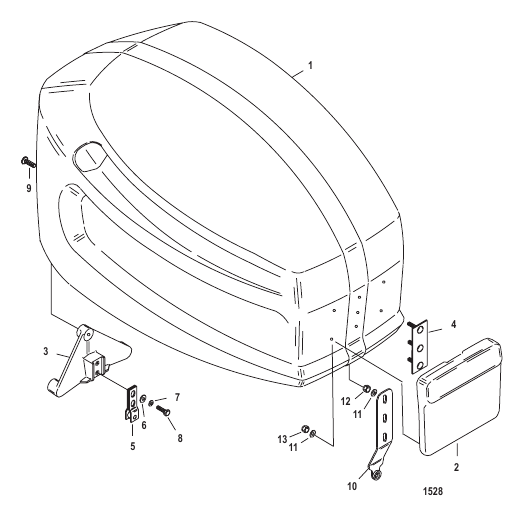

TOP COWL ASSEMBLY
|
1 |
|
| 10 |
849834A1 |
LATCH
|
1 |
|
| 11 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
7 |
superseded
|
| 12 |
8267098 |
NUT (.250-20) Stainless Steel
|
3 |
|
| 13 |
814101 |
NUT (.250-20) Stainless Steel
|
4 |
superseded
|
| 2 |
849209A3 |
SHIELD
|
1 |
disc.
|
| 3 |
8488081 |
BRACKET Latch
|
1 |
|
| 4 |
849179 |
PLATE
|
1 |
|
| 5 |
18173 |
BRACKET ASSEMBLY Latch Roller
|
1 |
superseded
|
| 6 |
814806 |
WASHER (.344 x .688 x .065) Stainless Steel
|
2 |
superseded
|
| 7 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 8 |
28782 |
SCREW (.312-18 x .880) Stainless Steel
|
2 |
|
| 9 |
849011 |
SCREW (.250-20 x .750)
|
4 |
|
