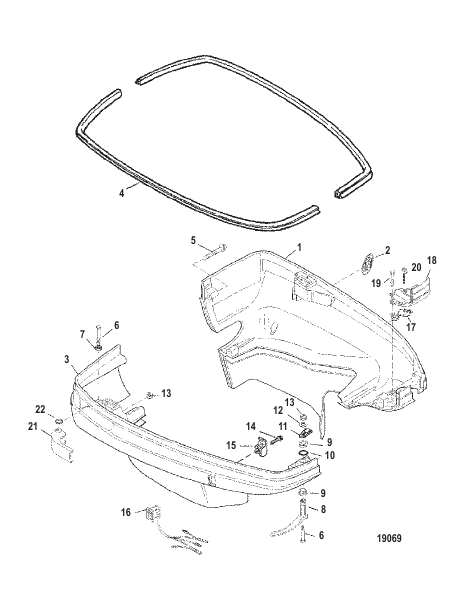

Bottom Cowl
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 850302A1 |
НИЖНИЙ КОЖУХ Левый борт (BLACK) BOTTOM COWL Port (BLACK) |
1 | discontinued |
| 1 | 850302A2 |
НИЖНИЙ КОЖУХ (PORT) (GRAY) BOTTOM COWL (PORT) (GRAY) |
1 | discontinued |
| 10 | 48462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.614 x 0.070) O-RING (.614 x .070) |
1 | |
| 11 | 8219423 |
СТОПОР PAWL |
1 | |
| 12 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) WASHER (.281 x .734 x .063) |
1 | |
| 13 | 400264 |
ГАЙКА (M6) NUT (M6) |
3 | superseded |
| 14 | 8214281 |
ВИНТ (№10-16 x 0.625) SCREW (#10-16 x .625) |
1 | |
| 15 | 822873 |
ЗАЖИМ CLIP |
1 | |
| 16 | 856990 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | superseded |
| 17 | 8506871 |
ЗАЖИМ (LOWER) CLAMP (LOWER) |
1 | superseded |
| 18 | 8503051 |
ЗАЖИМ (UPPER) CLAMP (UPPER) |
1 | discontinued |
| 19 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | |
| 2 | 854367 |
ПРОБКА PLUG |
1 | superseded |
| 20 | 87698 |
ВИНТ (№10-16 x 1.250), нержавеющая сталь SCREW (#10-16 x 1.250) Stainless Steel |
2 | |
| 21 | 852361F1 |
РУКОЯТКА Кожух HANDLE Cowl |
2 | superseded |
| 22 | 29402 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
2 | |
| 3 | 850301A1 |
НИЖНИЙ КОЖУХ Правый борт (BLACK) BOTTOM COWL Starboard (BLACK) |
1 | discontinued |
| 3 | 850301A2 |
НИЖНИЙ КОЖУХ (STBD.) (GRAY) BOTTOM COWL (STBD.) (GRAY) |
1 | discontinued |
| 4 | 8253183 |
УПЛОТНЕНИЕ (44.00") SEAL (44.00 Inches) |
2 | superseded |
| 5 | 82130040 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
4 | |
| 6 | 824868 |
ВИНТ (M6 x 75) SCREW (M6 x 75) |
3 | |
| 7 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 8 | 850684F1 |
ПЕРЕДНЯЯ РУКОЯТКА FRONT HANDLE |
1 | superseded |
| 9 | 335891 |
ВТУЛКА BUSHING |
2 |
