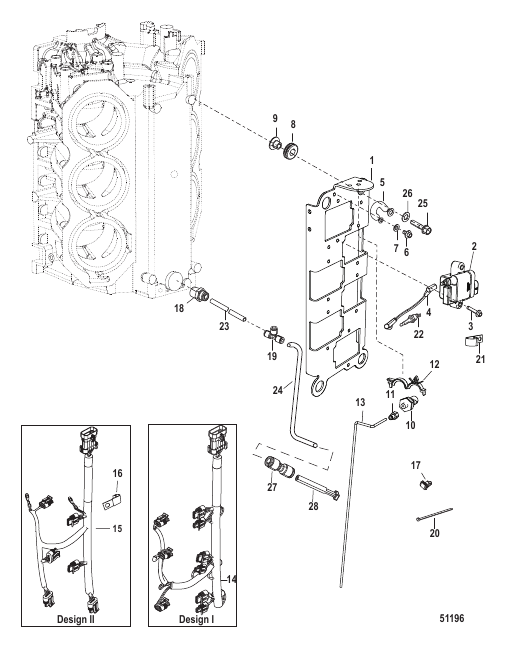

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
884272T |
PLATE Coil Mounting
|
1 |
|
| 10 |
881879A20 |
SENSOR ASSEMBLY Pressure
|
1 |
superseded
|
| 11 |
892403 |
FITTING
|
1 |
superseded
|
| 12 |
883066 |
CLIP (.865)
|
1 |
|
| 13 |
85978571 |
TUBING (52.00 Inches Bulk) (Cut to 18 Inches)
|
1 |
|
| 14 |
892972T04 |
HARNESS ASSEMBLY Coil (Design I) [1E050620] & Below
|
1 |
disc.
|
| 15 |
892972T05 |
HARNESS ASSEMBLY Coil (Design II) [1E050621] & Up
|
1 |
|
| 16 |
54457 |
J CLIP (Design II) [1E050621] & Up
|
5 |
|
| 17 |
879962 |
CLIP (Also included with 892972T04)
|
1 |
|
| 18 |
881866 |
FITTING
|
1 |
|
| 19 |
875207 |
TEE Fitting
|
1 |
|
| 2 |
879984A1 |
COIL KIT
|
6 |
superseded
|
| 20 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 21 |
65292 |
J CLIP
|
1 |
superseded
|
| 22 |
8M0009927 |
SPARK PLUG (NGK-IZFR7M)
|
6 |
|
| 23 |
85978571 |
TUBING (52.00 Inches Bulk) (Cut to 5 Inches)
|
1 |
|
| 24 |
85944975 |
TUBING (72.00 Inches Bulk) (Cut to 52 Inches)
|
1 |
|
| 25 |
81893435 |
SCREW (M8 x 35)
|
4 |
|
| 26 |
4002318 |
WASHER 8.90 x 24.0x 2.4 PL SS
|
4 |
|
| 27 |
859747 |
COUPLER
|
1 |
superseded
|
| 28 |
859732 |
PLUG
|
1 |
|
| 3 |
82129130 |
SCREW (M6 x 30)
|
12 |
|
| 4 |
881908T |
CABLE SET
|
1 |
|
| 5 |
858414A1 |
CABLE ASSEMBLY Braided
|
2 |
|
| 6 |
82129110 |
SCREW (M6 x 10)
|
4 |
|
| 7 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
superseded
|
| 8 |
833155 |
GROMMET
|
4 |
|
| 9 |
8502341 |
BUSHING
|
4 |
|
