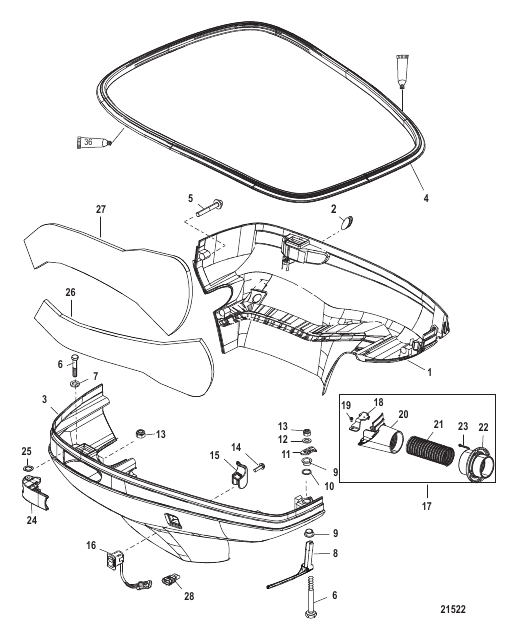

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850302A07 |
BOTTOM COWL Port
|
1 |
superseded
|
| 10 |
48462 |
O-RING (.614 x .070)
|
1 |
|
| 11 |
8219423 |
PAWL
|
1 |
|
| 12 |
69057 |
WASHER (.281 x .734 x .063)
|
1 |
|
| 13 |
401366 |
NUT (M6) Stainless Steel
|
3 |
|
| 14 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 15 |
822873 |
CLIP
|
1 |
|
| 16 |
896620001 |
SWITCH Trim
|
1 |
superseded
|
| 17 |
842756T01 |
RIGGING KIT
|
1 |
|
| 18 |
842744002 |
BRACKET
|
1 |
|
| 19 |
82130012 |
SCREW (M6 x 12)
|
3 |
|
| 2 |
854367001 |
PLUG
|
1 |
|
| 20 |
843185T02 |
COUPLER
|
1 |
|
| 21 |
842756005 |
HOSE
|
1 |
|
| 22 |
843174002 |
COUPLER
|
1 |
|
| 23 |
47994 |
SCREW (#10 x 1.50)
|
4 |
|
| 24 |
852361T1 |
HANDLE Cowl [1E003085] & Below
|
2 |
disc.
|
| 24 |
852361T02 |
HANDLE [1E003086] & Up
|
2 |
|
| 25 |
29402 |
WAVE WASHER [1E003085] & Below
|
2 |
|
| 26 |
8M0007874 |
FOAM Starboard
|
1 |
superseded
|
| 27 |
8M0007873 |
FOAM Port
|
1 |
superseded
|
| 28 |
822447T01 |
CAP ASSEMBLY Connector - 3 Pin Male
|
1 |
|
| 3 |
850301A07 |
BOTTOM COWL Starboard
|
1 |
superseded
|
| 4 |
844155001 |
SEAL Cowl
|
1 |
superseded
|
| 5 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 6 |
824868 |
SCREW (M6 x 75)
|
3 |
|
| 7 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 8 |
850684F1 |
FRONT HANDLE
|
1 |
superseded
|
| 9 |
335891 |
BUSHING
|
2 |
|
