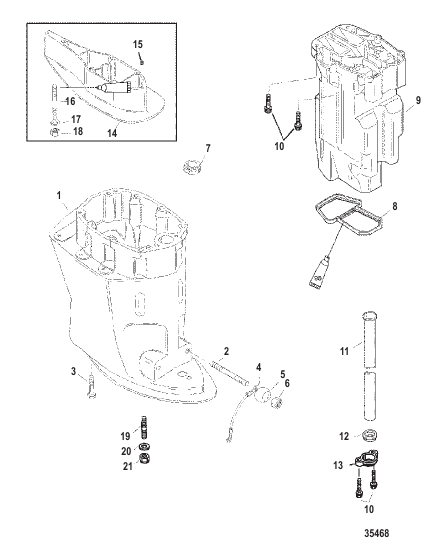

Driveshaft Housing and Exhaust Tube
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 848939T3 |
КОРПУС В СБОРЕ Карданный вал Long [0G980648] & Up HOUSING ASSEMBLY Driveshaft Long [0G980648] & Up |
1 | discontinued |
| 1 | 849778T2 |
КОРПУС В СБОРЕ Карданный вал X-Long [0G980648] & Up HOUSING ASSEMBLY Driveshaft X-Long [0G980648] & Up |
1 | superseded |
| 1 | 848939A1 |
КОРПУС В СБОРЕ Карданный вал Black-Long [0G980647] & Below HOUSING ASSEMBLY Driveshaft Black-Long [0G980647] & Below |
1 | superseded |
| 1 | 848939A2 |
КОРПУС В СБОРЕ Карданный вал Gray-Long [0G980647] & Below HOUSING ASSEMBLY Driveshaft Gray-Long [0G980647] & Below |
1 | discontinued |
| 10 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
6 | |
| 11 | 8329411 |
ТРУБА Вода LONG TUBE Water LONG |
1 | superseded |
| 11 | 8329412 |
ТРУБА Вода X-LONG TUBE Water X-LONG |
1 | superseded |
| 12 | 832940 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 13 | 8329391 |
ЗАЖИМ CLAMP |
1 | |
| 14 | 823979T2 |
ПРОСТАВКА (BLACK) USE WHERE APPLICABLE SPACER (BLACK) USE WHERE APPLICABLE |
1 | discontinued |
| 14 | 823979T3 |
ПРОСТАВКА (GRAY) USE WHERE APPLICABLE SPACER (GRAY) USE WHERE APPLICABLE |
1 | discontinued |
| 15 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) USE WHERE APPLICABLE PIN Dowel - Without Hole (.375 x .625) USE WHERE APPLICABLE |
2 | |
| 16 | 857009 |
ШПИЛЬКА (M12 x 179) USE WHERE APPLICABLE STUD (M12 x 179) USE WHERE APPLICABLE |
4 | superseded |
| 16 | 824118 |
ШПИЛЬКА (M10 X 173) USE WHERE APPLICABLE STUD (M10 X 173) USE WHERE APPLICABLE |
1 | discontinued |
| 17 | 856774 |
ШАЙБА (0.406 x 0.750 x 0.105), нержавеющая сталь USE WHERE APPLICABLE WASHER (.406 x .750 x .105) Stainless Steel USE WHERE APPLICABLE |
1 | superseded |
| 18 | 400636 |
ГАЙКА (M10 X 1.5) USE WHERE APPLICABLE NUT (M10 X 1.5) USE WHERE APPLICABLE |
1 | |
| 19 | 848843 |
ШПИЛЬКА (M12 x 65) (SPORTMASTER) STUD (M12 x 65) (SPORTMASTER) |
4 | superseded |
| 19 | 856983 |
ШПИЛЬКА (M12 x 52) (TORQUE/FLEET MASTER) STUD (M12 x 52) (TORQUE/FLEET MASTER) |
4 | superseded |
| 2 | 816055 |
ШПИЛЬКА (0.500 x 4.50) STUD (.500 x 4.50) |
2 | |
| 20 | 4002321 |
ШАЙБА (12.80 мм x 24.0 мм x 2.4 мм), нержавеющая сталь WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel |
4 | |
| 21 | 821280 |
ГАЙКА NUT |
4 | superseded |
| 3 | 82130130 |
ВИНТ (M10 x 30) [0G980647] & Below SCREW (M10 x 30) [0G980647] & Below |
2 | |
| 3 | 4009135 |
ВИНТ (M12 x 35) Internal Hex [0G980648] & Up SCREW (M12 x 35) Internal Hex [0G980648] & Up |
2 | superseded |
| 3 | 857136 |
ВИНТ (M12 x 35 мм) External Hex SCREW (M12 x 35 MM) External Hex |
2 | |
| 4 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 5 | 816056 |
ШАЙБА WASHER |
2 | |
| 6 | 28040 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | superseded |
| 7 | 8331231 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 8 | 8329321 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 9 | 833116T2 |
ТРУБА Выхлоп TUBE Exhaust |
1 | discontinued |
