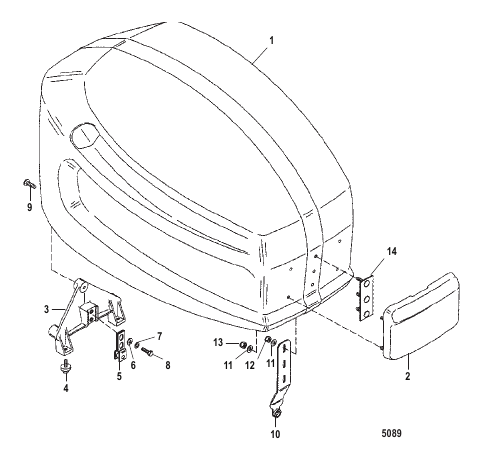

Top Cowl (S/N-0G857000 and Up)
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 849049A1 |
НАБОР НАКЛЕЕК (Black) [0G857000] THRU [0G980649] DECAL SET (Black) [0G857000] THRU [0G980649] |
1 | superseded |
| - | 849065A1 |
НАБОР НАКЛЕЕК (Silver) [0G857000] THRU [0G980649] DECAL SET (Silver) [0G857000] THRU [0G980649] |
1 | discontinued |
| - | 840323A16 |
НАБОР НАКЛЕЕК Does not include 300 number decal [0G980650] & Up DECAL SET Does not include 300 number decal [0G980650] & Up |
1 | discontinued |
| - | 840323A20 |
НАБОР НАКЛЕЕК Complete Set - Includes 300 number decal [0G980650] & Up DECAL SET Complete Set - Includes 300 number decal [0G980650] & Up |
1 | discontinued |
| 1 | 848792T7 |
ВЕРХНИЙ КОЖУХ В СБОРЕ [0G980650] & Up TOP COWL ASSEMBLY [0G980650] & Up |
1 | discontinued |
| 1 | 848792T5 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Black) [0G857000] THRU [0G980649] TOP COWL ASSEMBLY (Black) [0G857000] THRU [0G980649] |
1 | superseded |
| 1 | 848792T6 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Silver) [0G857000] THRU [0G980649] TOP COWL ASSEMBLY (Silver) [0G857000] THRU [0G980649] |
1 | discontinued |
| 10 | 849834A1 |
ЗАЩЕЛКА LATCH |
1 | |
| 11 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
7 | superseded |
| 12 | 56374 |
ГАЙКА (0.250-20) NUT (.250-20) |
3 | superseded |
| 13 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
4 | superseded |
| 14 | 849179 |
ПЛАСТИНА PLATE |
1 | |
| 2 | 848820T1 |
ЭКРАН (Black) SHIELD (Black) |
1 | discontinued |
| 2 | 848820T2 |
ЭКРАН (Silver) SHIELD (Silver) |
1 | discontinued |
| 3 | 848808 |
КРОНШТЕЙН Защелка BRACKET Latch |
1 | |
| 4 | 849374 |
УПОР BUMPER |
2 | |
| 5 | 18173 |
КРОНШТЕЙН В СБОРЕ Роликовая защелка BRACKET ASSEMBLY Latch Roller |
1 | superseded |
| 6 | 814806 |
ШАЙБА (0.344 x 0.688 x 0.065), нержавеющая сталь WASHER (.344 x .688 x .065) Stainless Steel |
2 | superseded |
| 7 | 53166 |
СТОПОРНАЯ ШАЙБА (0.312) LOCKWASHER (.312) |
2 | |
| 8 | 28782 |
ВИНТ (0.312-18 x 0.880), нержавеющая сталь SCREW (.312-18 x .880) Stainless Steel |
2 | |
| 9 | 849011 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
4 |
