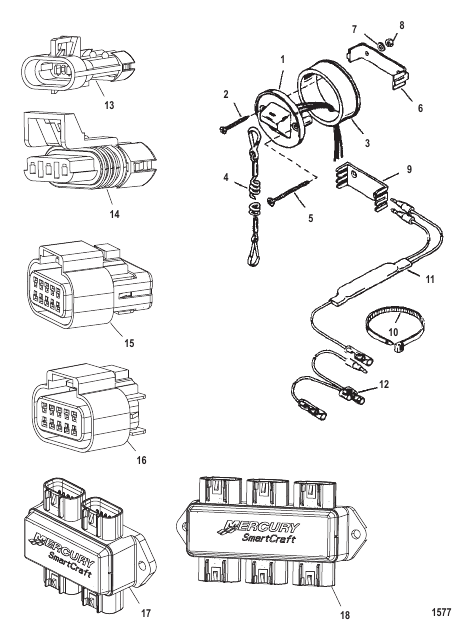

| # | Part Number | Description | Qty | Status |
|---|
| - |
879981T20 |
HARNESS ASSEMBLY (SC1000R-20)
|
1 |
|
| - |
879979T1 |
HARNESS ASSEMBLY Tachometer (SC1000-3)
|
1 |
superseded
|
| - |
879968T10 |
HARNESS ASSEMBLY (SC1000-10)
|
1 |
|
| - |
879896K4 |
SYSTEM MONITOR KIT SC1000 - Front Mount Front Mount [0T997973] & Below
|
1 |
superseded
|
| - |
879896K08 |
SYSTEM MONITOR KIT SC1000 - Front Mount [0T997974] & Up
|
1 |
superseded
|
| - |
858610A31 |
HOSE ASSEMBLY Fuel
|
1 |
disc.
|
| - |
879918K11 |
WATER PRESSURE GAUGE (White) (WHITE)
|
1 |
disc.
|
| - |
879914K11 |
TRIM GAUGE (White) (WHITE)
|
1 |
disc.
|
| 1 |
19674A1 |
SWITCH ASSEMBLY Lanyard
|
1 |
disc.
|
| 10 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 11 |
812497A2 |
DIODE ASSEMBLY
|
1 |
disc.
|
| 12 |
11149A2 |
CABLE ASSEMBLY (6.00 Inches)
|
1 |
|
| 13 |
881176A1 |
CAP ASSEMBLY 3 Position-Male Connector
|
1 |
|
| 14 |
881175A1 |
CAP ASSEMBLY 3 Position-Female Connector
|
1 |
|
| 15 |
859318T1 |
TERMINATOR 10 Pin (CAN 1 and 2)
|
1 |
superseded
|
| 16 |
859318T2 |
CAP Weather - 10 Pin
|
1 |
|
| 17 |
878492T4 |
JUNCTION BOX 4 Way
|
1 |
superseded
|
| 18 |
878492T6 |
JUNCTION BOX 6 Way
|
1 |
superseded
|
| 2 |
18303 |
SCREW (.190-16 x 1.750) Stainless Steel
|
2 |
|
| 3 |
813679 |
ADAPTER
|
1 |
|
| 4 |
15920Q54 |
LANYARD ASSEMBLY
|
1 |
disc.
|
| 5 |
32866 |
SCREW (#10-32 x 2.00) Stainless Steel
|
2 |
|
| 6 |
18321 |
CLAMP Mounting
|
1 |
|
| 7 |
24676 |
WASHER (.200 x .440 x .032)
|
2 |
|
| 8 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 9 |
79146 |
RETAINER
|
3 |
|
