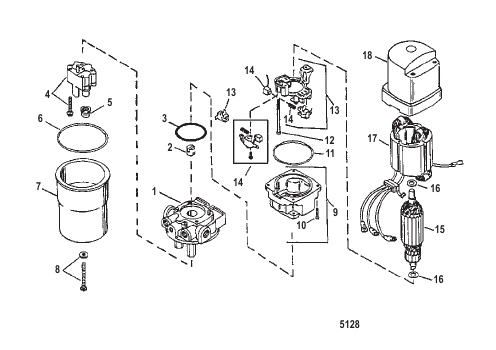

Hydraulic Pump Assembly Sportmaster
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 846859A1 |
НАСОС В СБОРЕ Гидравлический PUMP ASSEMBLY Hydraulic |
1 | superseded |
| - | 17649T |
ДВИГАТЕЛЬ В СБОРЕ (Design I - W/O Etched Manufacturer's Number on Motor Cover) MOTOR ASSEMBLY (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | superseded |
| - | 891736T |
ДВИГАТЕЛЬ В СБОРЕ (Design II - WITH Etched Manufacturer's Number on Motor Cover) MOTOR ASSEMBLY (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| - | 812498A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка VALVE KIT Relief |
1 | |
| 1 | 811491 |
ADAPTER |
1 | superseded |
| 10 | 17626 |
ВИНТ (Design I - W/O Etched Manufacturer's Number on Motor Cover) SCREW (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
4 | discontinued |
| 10 | 891741 |
ВИНТ (Design II - WITH Etched Manufacturer's Number on Motor Cover) SCREW (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
4 | discontinued |
| 11 | 17625 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Design I - W/O Etched Manufacturer's Number on Motor Cover) O-RING (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 11 | 891740 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Design II - WITH Etched Manufacturer's Number on Motor Cover) O-RING (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 12 | 17621 |
ВИНТ (Design I - W/O Etched Manufacturer's Number on Motor Cover) SCREW (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
2 | discontinued |
| 12 | 891739 |
ВИНТ (Design II - WITH Etched Manufacturer's Number on Motor Cover) SCREW (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
2 | discontinued |
| 13 | 17633 |
КОМПЛЕКТ ДЕРЖАТЕЛЯ (Design I - W/O Etched Manufacturer's Number on Motor Cover) HOLDER KIT (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 13 | 891738 |
ДЕРЖАТЕЛЬ В СБОРЕ (Design II - WITH Etched Manufacturer's Number on Motor Cover) HOLDER ASSEMBLY (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 14 | 17631A1 |
КОМПЛЕКТ ЩЕТКИ (Design I - W/O Etched Manufacturer's Number on Motor Cover) BRUSH KIT (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 14 | 891737 |
КОМПЛЕКТ ЩЕТКИ (Design II - WITH Etched Manufacturer's Number on Motor Cover) BRUSH KIT (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 15 | 17623 |
ЯКОРЬ (Design I - W/O Etched Manufacturer's Number on Motor Cover) ARMATURE (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Armature (Design II - WITH Etched Manufacturer's Number on Motor Cover) NOT SOLD SEPARATE Armature (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 16 | 17653 |
ШАЙБА (Design I - W/O Etched Manufacturer's Number on Motor Cover) WASHER (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
2 | discontinued |
| 16 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Thrust Washer (Design II - WITH Etched Manufacturer's Number on Motor Cover) NOT SOLD SEPARATE Thrust Washer (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
2 | |
| 17 | 17624 |
СТАНИНА В СБОРЕ (Design I - W/O Etched Manufacturer's Number on Motor Cover) FIELD AND FRAME ASSEMBLY (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Field and Frame (Design II - WITH Etched Manufacturer's Number on Motor Cover) NOT SOLD SEPARATE Field and Frame (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 18 | 17622 |
КРЫШКА В СБОРЕ (Design I - W/O Etched Manufacturer's Number on Motor Cover) COVER ASSEMBLY (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover (Design II - WITH Etched Manufacturer's Number on Motor Cover) NOT SOLD SEPARATE Cover (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 | |
| 2 | 803852 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | |
| 3 | 89498 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 4 | 811492T |
НАСОС В СБОРЕ (INCLUDES SCREWS) PUMP ASSEMBLY (INCLUDES SCREWS) |
1 | |
| 5 | 89496 |
ФИЛЬТР FILTER |
2 | |
| 6 | 89497 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reservoir End O-RING Reservoir End |
1 | |
| 7 | 41219T |
РЕЗЕРВУАР RESERVOIR |
1 | |
| 8 | 811493 |
КОМПЛЕКТ ВИНТОВ SCREW KIT |
1 | |
| 9 | 17632T |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ (Design I - W/O Etched Manufacturer's Number on Motor Cover) END CAP ASSEMBLY (Design I - W/O Etched Manufacturer's Number on Motor Cover) |
1 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО End Cap (Design II - WITH Etched Manufacturer's Number on Motor Cover) NOT SOLD SEPARATE End Cap (Design II - WITH Etched Manufacturer's Number on Motor Cover) |
1 |
