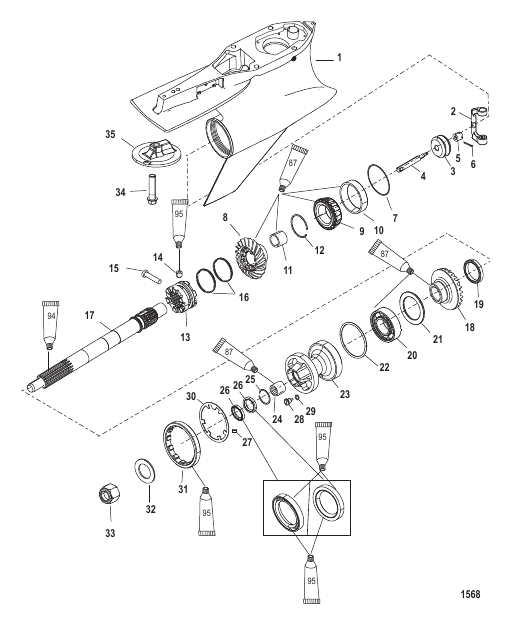

| # | Part Number | Description | Qty | Status |
|---|
| - |
840306T6 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1-With Torque Tab) [0T997973] & Below
|
1 |
disc.
|
| - |
840306T08 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1-Long With Torque Tab) [0T997974] & Up
|
1 |
superseded
|
| - |
840306T12 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.62:1-X-Long With Torque Tab)
|
1 |
superseded
|
| - |
840307T12 |
GEAR HOUSING ASSEMBLY Complete (1.62:1-Without Torque Tab) [0T997973] & Below
|
1 |
disc.
|
| - |
840307T15 |
GEAR HOUSING ASSEMBLY Complete (1.62:1-Long Without Torque Tab) [0T997974] & Up
|
1 |
superseded
|
| - |
840307T19 |
GEAR HOUSING ASSEMBLY Complete (1.62:1-X-Long Without Torque Tab)
|
1 |
superseded
|
| - |
840306T7 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1-With Torque Tab) [0T997973] & Below
|
1 |
disc.
|
| - |
840306T09 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1-Long With Torque Tab) [0T997974] & Up
|
1 |
superseded
|
| - |
840306T13 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.75:1-X-Long With Torque Tab)
|
1 |
superseded
|
| - |
840307T13 |
GEAR HOUSING ASSEMBLY Complete (1.75:1-Without Torque Tab) [0T997973] & Below
|
1 |
disc.
|
| - |
840307T17 |
GEAR HOUSING ASSEMBLY Complete (1.75:1-Long Without Torque Tab) [0T997974] & Up
|
1 |
superseded
|
| - |
840307T21 |
GEAR HOUSING ASSEMBLY Complete (1.75:1-X-Long Without Torque Tab)
|
1 |
superseded
|
| - |
840306T10 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (1.87:1-Long)
|
1 |
superseded
|
| - |
840306T11 |
GEAR HOUSING ASSEMBLY Complete, With Torque Tab (2.0:1-Long)
|
1 |
superseded
|
| - |
816575A6 |
SEAL KIT Gear Housing
|
1 |
|
| - |
840389K5 |
HUB KIT [0T997973] & Below
|
1 |
superseded
|
| - |
840389K06 |
PROP HUB KIT [0T997974] & Up
|
1 |
superseded
|
| - |
840382A1 |
SNUBBER STRIP KIT [0T997973] & Below
|
1 |
superseded
|
| - |
840382A02 |
SNUBBER STRIP KIT [0T997974] & Up
|
1 |
|
| 1 |
840306T3 |
GEAR HOUSING ASSEMBLY Basic, With Torque Tab (Basic)
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 11 |
30895T |
BEARING Needle
|
1 |
|
| 12 |
856823 |
RING Retaining
|
1 |
|
| 13 |
848878T |
CLUTCH
|
1 |
|
| 14 |
78909 |
PIN Detent
|
2 |
|
| 15 |
848838 |
PIN Cross
|
1 |
|
| 16 |
78962 |
SPRING
|
2 |
|
| 17 |
840453A2 |
PROPELLER SHAFT [0T997973] & Below
|
1 |
superseded
|
| 17 |
840453A03 |
PROPELLER SHAFT [0T997974] & Up
|
1 |
disc.
|
| 18 |
848880T1 |
GEAR Reverse (1.62)
|
1 |
|
| 18 |
848881A1 |
GEAR Reverse (1.75:1)
|
1 |
superseded
|
| 18 |
844147T01 |
GEAR Reverse (1.87:1)
|
1 |
|
| 18 |
844148T01 |
GEAR Reverse (2.0:1)
|
1 |
|
| 19 |
8241081 |
THRUST SPACER
|
1 |
|
| 2 |
823903 |
SHIFT CRANK
|
1 |
superseded
|
| 20 |
88957T |
BEARING Ball
|
1 |
|
| 21 |
681001 |
RING Thrust
|
1 |
|
| 22 |
31534 |
O-RING
|
1 |
superseded
|
| 23 |
848840T1 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 24 |
817072 |
BEARING Roller
|
1 |
|
| 25 |
817071 |
RING Snap
|
1 |
|
| 26 |
815565 |
SEAL Oil
|
2 |
|
| 27 |
30281 |
KEY
|
1 |
|
| 28 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 29 |
191833 |
SEAL
|
1 |
superseded
|
| 3 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 30 |
79447 |
TAB WASHER
|
1 |
|
| 31 |
79448 |
RETAINER
|
1 |
superseded
|
| 32 |
85344 |
WASHER (.750 Inside Diameter)
|
1 |
|
| 33 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 34 |
41350 |
SCREW (.437-14 x 2.50) Stainless Steel (2-1/2 IN.)
|
1 |
|
| 35 |
76214T3 |
ANODE
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Spool
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Sleeve
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cotter Pin
|
1 |
|
| 7 |
47397A1 |
SHIM SET
|
1 |
|
| 8 |
878087A6 |
GEAR SET Forward/Pinion (1.62)
|
1 |
|
| 8 |
828168T3 |
GEAR SET Forward/Pinion (175:1)
|
1 |
superseded
|
| 8 |
878611T03 |
GEAR SET Forward/Pinion (1.87:1)
|
1 |
disc.
|
| 8 |
878617A05 |
GEAR SET Forward/Pinion (2.0:1)
|
1 |
|
| 9 |
828437A2 |
BEARING ASSEMBLY
|
1 |
|
