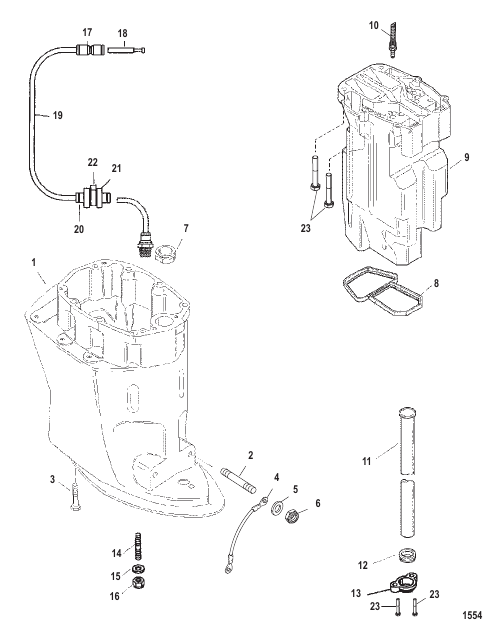

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
848939T3 |
HOUSING ASSEMBLY Driveshaft (LONG)
|
1 |
disc.
|
| 1 |
849778A2 |
HOUSING ASSEMBLY Driveshaft (X-LONG)
|
1 |
disc.
|
| 10 |
NSS |
NOT SOLD SEPARATE Strainer
|
1 |
|
| 11 |
8329417 |
TUBE Water (LONG)
|
1 |
superseded
|
| 11 |
8329418 |
TUBE Water (X-LONG)
|
1 |
superseded
|
| 12 |
832940 |
SEAL [0T997973] & Below
|
1 |
superseded
|
| 12 |
832940001 |
SEAL [0T997974] & Up
|
1 |
|
| 13 |
8329391 |
CLAMP
|
1 |
|
| 14 |
848843 |
STUD (M12 x 65) (M12 x 65)
|
4 |
superseded
|
| 14 |
856983 |
STUD (M12 x 52) (M12 x 52)
|
4 |
superseded
|
| 15 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
4 |
|
| 16 |
4013812 |
NUT (M12) Stainless Steel (STAINLESS STEEL)
|
4 |
|
| 17 |
859747 |
COUPLER
|
1 |
superseded
|
| 18 |
859732 |
PLUG
|
1 |
|
| 19 |
85944975 |
TUBING (72.00 Inches Bulk) Cut to 52 Inches
|
1 |
|
| 2 |
816055 |
STUD (.500 x 4.50) (4-1/2 IN.)
|
2 |
|
| 20 |
859448 |
FITTING (Use where Applicable)
|
1 |
superseded
|
| 21 |
821555 |
GROMMET (Use where Applicable)
|
1 |
superseded
|
| 22 |
850181 |
TIE STRAP (11.750 Inches) (Use where Applicable)
|
1 |
|
| 23 |
81893435 |
SCREW (M8 x 35)
|
6 |
|
| 3 |
892860 |
SCREW (M12 x 35) Internal Hex
|
2 |
|
| 3 |
857136 |
SCREW (M12 x 35 MM) External Hex
|
2 |
|
| 4 |
88238A10 |
CABLE ASSEMBLY Ground
|
1 |
|
| 5 |
816056 |
WASHER
|
2 |
|
| 6 |
82670817 |
NUT (.500-20)
|
2 |
superseded
|
| 7 |
8331231 |
GROMMET
|
1 |
|
| 8 |
8329321 |
SEAL
|
1 |
|
| 9 |
833116A9 |
TUBE ASSEMBLY Exhaust
|
1 |
disc.
|
