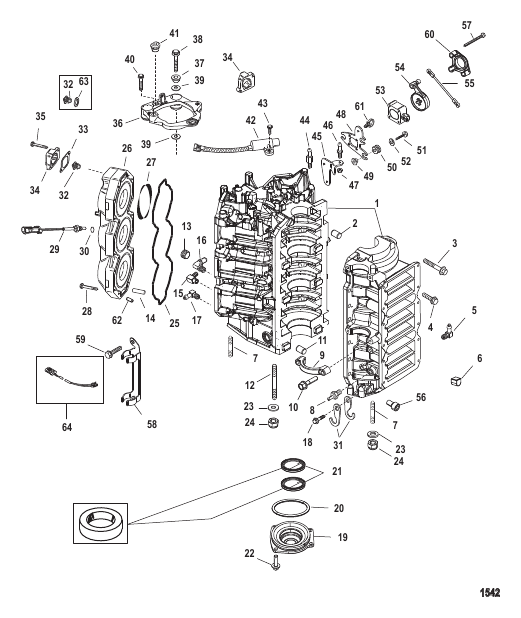

| # | Part Number | Description | Qty | Status |
|---|
| - |
832933A01 |
GASKET SET Powerhead
|
1 |
|
| - |
840756A03 |
POWERHEAD ASSEMBLY [0T818119] & Below
|
1 |
superseded
|
| - |
840756A04 |
POWERHEAD ASSEMBLY [0T818120] & Up
|
1 |
disc.
|
| 1 |
9811A85 |
CYLINDER BLOCK [0T818119] & Below
|
1 |
superseded
|
| 1 |
9811A98 |
CYLINDER BLOCK [0T818120] & Up
|
1 |
disc.
|
| 10 |
81893440 |
SCREW (M8 x 40)
|
4 |
|
| 11 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 12 |
8154431 |
STUD (M10 x 1.5 x 155)
|
6 |
|
| 13 |
328022 |
PLUG Pipe (.125-27) Brass
|
1 |
|
| 14 |
8248577 |
DEFLECTOR
|
6 |
|
| 15 |
8402751 |
FITTING (90 Degree)
|
1 |
|
| 16 |
840908 |
FITTING
|
1 |
|
| 17 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 18 |
81893420 |
SCREW (M8 x 20)
|
1 |
|
| 19 |
9787A4 |
END CAP ASSEMBLY Lower
|
1 |
|
| 2 |
67296 |
PIN
|
3 |
superseded
|
| 20 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 21 |
8308981 |
SEAL
|
2 |
|
| 22 |
82130020 |
SCREW (M6 x 20)
|
4 |
|
| 23 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
10 |
superseded
|
| 24 |
4013610 |
NUT (M10) Stainless Steel
|
10 |
|
| 25 |
818574 |
SEAL
|
2 |
|
| 26 |
812851T25 |
CYLINDER HEAD [0T818119] & Below
|
2 |
superseded
|
| 26 |
812851A30 |
CYLINDER HEAD [0T818120] & Up
|
2 |
|
| 27 |
884391 |
SEAL [0T651945] & Up
|
6 |
|
| 27 |
878453 |
SEAL [0T651944] & Below
|
6 |
|
| 28 |
859096 |
SCREW (M8 x 50)
|
40 |
superseded
|
| 29 |
889575 |
SENSOR ASSEMBLY [0T818119] & Below
|
2 |
superseded
|
| 29 |
885342001 |
SENSOR ASSEMBLY [0T818120] & Up
|
2 |
superseded
|
| 3 |
82446180 |
SCREW (M10 x 80)
|
10 |
|
| 30 |
627021 |
O-RING (.301 x .070) [0T818119] & Below
|
2 |
|
| 30 |
888814 |
O-RING (.351 x .072) [0T818120] & Up
|
2 |
superseded
|
| 31 |
8588641 |
RETAINER Oil Line
|
2 |
|
| 32 |
843148A1 |
THERMOSTAT KIT (130 Degree) [0T651944] & Below
|
2 |
|
| 32 |
885599002 |
THERMOSTAT 49°C (120°F) (120 Degree) [0T651945] THRU [0T997973]
|
2 |
superseded
|
| 32 |
885599005 |
THERMOSTAT 49°C (120°F) [0T997974] & Up
|
2 |
disc.
|
| 33 |
8503181 |
GASKET (Included with 843148A1 Kit)
|
2 |
|
| 34 |
NSS |
NOT SOLD SEPARATE Thermostat Cover (Part of 843148A1)
|
2 |
|
| 34 |
887926 |
COVER Thermostat [0T651945] & Up
|
2 |
superseded
|
| 35 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 36 |
857186A1 |
PLATE ASSEMBLY
|
1 |
superseded
|
| 37 |
855729 |
MOUNT
|
3 |
|
| 38 |
82130145 |
SCREW (M10 x 45)
|
3 |
|
| 39 |
855725 |
WASHER
|
6 |
|
| 4 |
81893435 |
SCREW (M8 x 35)
|
12 |
|
| 40 |
82130150 |
SCREW (M10 x 50)
|
2 |
|
| 41 |
19565 |
GROMMET [0T997973] & Below
|
1 |
superseded
|
| 41 |
19565002 |
GROMMET [0T997974] & Up
|
1 |
|
| 42 |
8283582 |
SENSOR
|
1 |
superseded
|
| 43 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 44 |
8405101 |
PIN
|
1 |
|
| 45 |
840498T |
BRACKET
|
1 |
disc.
|
| 46 |
8215832 |
PIN Special (1.5 Inches)
|
3 |
|
| 47 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 48 |
8544862 |
BRACKET
|
1 |
|
| 49 |
856954 |
BUSHING
|
3 |
|
| 5 |
687271 |
FITTING (.250-18) 90 Degree - Brass
|
1 |
|
| 50 |
834985 |
GROMMET
|
3 |
superseded
|
| 51 |
82130025 |
SCREW (M6 x 25) (25MM)
|
1 |
|
| 51 |
82130030 |
SCREW (M6 x 30) (30MM)
|
2 |
|
| 52 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 53 |
83295211 |
INDICATOR Throttle Position
|
1 |
superseded
|
| 54 |
8583561 |
LEVER TPI [0T651944] & Below
|
1 |
|
| 54 |
883081 |
LEVER [0T651945] & Up
|
1 |
|
| 55 |
1938544 |
LINK [0T651944] & Below
|
1 |
|
| 55 |
1938545 |
LINK [0T651945] & Up
|
1 |
disc.
|
| 56 |
82130012 |
SCREW (M6 x 12) (Flanged Head)
|
1 |
|
| 56 |
82494810 |
SCREW (M6 x 10) (Socket Head)
|
1 |
|
| 57 |
40011113 |
SCREW (M5 x 45) Stainless Steel
|
3 |
|
| 58 |
8266241 |
CLAMP
|
1 |
|
| 59 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 6 |
850309 |
PLUG [0T997973] & Below
|
6 |
superseded
|
| 6 |
850309001 |
PLUG Stop [0T997974] & Up
|
6 |
|
| 60 |
8582261 |
COVER
|
1 |
|
| 61 |
858932 |
CLIP [0T651945] & Up
|
1 |
|
| 62 |
63779 |
PIN Dowel (.250 x .625) [0T818120] & Up
|
4 |
|
| 63 |
854639 |
SEAL (Use where Applicable)
|
2 |
superseded
|
| 64 |
841092A1 |
HARNESS ASSEMBLY Adaptor (Included with Cylinder Head)
|
1 |
disc.
|
| 7 |
903509 |
STUD (M10 x 1.5 x 64)
|
4 |
|
| 8 |
8781051 |
CHECK VALVE
|
1 |
|
| 9 |
8569662 |
BRACKET
|
2 |
superseded
|
