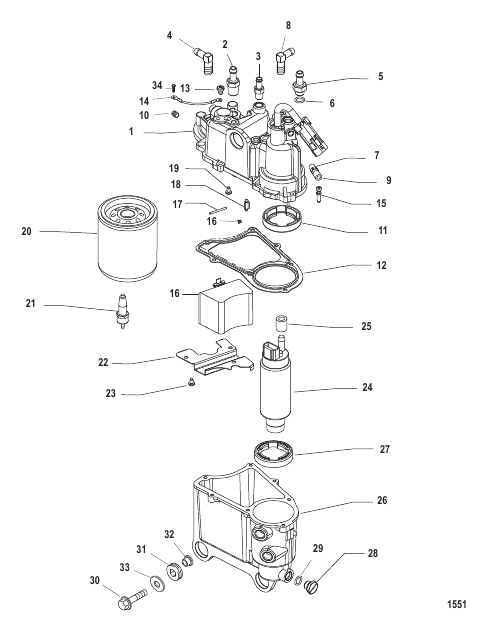

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
881704T2 |
COVER KIT
|
1 |
disc.
|
| 10 |
883208 |
PLUG
|
1 |
|
| 11 |
883248 |
SEAL
|
1 |
|
| 12 |
883252 |
GASKET
|
1 |
|
| 13 |
883261 |
SCREW (M5 x .8)
|
1 |
|
| 14 |
881831 |
WIRE ASSEMBLY
|
1 |
disc.
|
| 15 |
808612 |
SCREW AND WASHER (#8-32 x .750)
|
7 |
|
| 16 |
883253A1 |
FLOAT KIT
|
1 |
|
| 17 |
F10064 |
SHAFT
|
1 |
|
| 18 |
883247A1 |
VALVE/SEAT KIT Inlet
|
1 |
|
| 19 |
883223 |
SCREW (M6 x 16)
|
1 |
|
| 2 |
881740 |
FITTING Straight
|
1 |
disc.
|
| 20 |
18458Q4 |
FILTER Fuel-Water Separating
|
1 |
|
| 21 |
8285861 |
PROBE
|
1 |
superseded
|
| 22 |
883260 |
BAFFLE
|
1 |
superseded
|
| 23 |
883223 |
SCREW (M6 x 16)
|
3 |
|
| 24 |
881705T1 |
PUMP KIT
|
1 |
|
| 25 |
855428 |
SLEEVE
|
1 |
superseded
|
| 26 |
881703T2 |
BOWL KIT
|
1 |
|
| 27 |
883248 |
SEAL
|
1 |
|
| 28 |
855435A1 |
PLUG KIT
|
1 |
|
| 29 |
883209 |
O-RING
|
1 |
superseded
|
| 3 |
883249 |
FITTING
|
1 |
|
| 30 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 31 |
855362 |
GROMMET [0T997973] & Below
|
3 |
superseded
|
| 31 |
855362001 |
GROMMET [0T997974] & Up
|
3 |
|
| 32 |
855364 |
BUSHING
|
3 |
|
| 33 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
3 |
|
| 34 |
16955 |
SCREW (M6 x 8)
|
1 |
|
| 4 |
881736 |
FITTING
|
1 |
disc.
|
| 5 |
855437A2 |
FITTING KIT Pump Outlet
|
1 |
|
| 6 |
883209 |
O-RING
|
1 |
superseded
|
| 7 |
883219 |
VALVE
|
1 |
|
| 8 |
883988 |
ELBOW
|
1 |
|
| 9 |
883220 |
CAP
|
1 |
|
