| # | Part Number | Description | Qty | Status |
|---|
| - |
840444T2 |

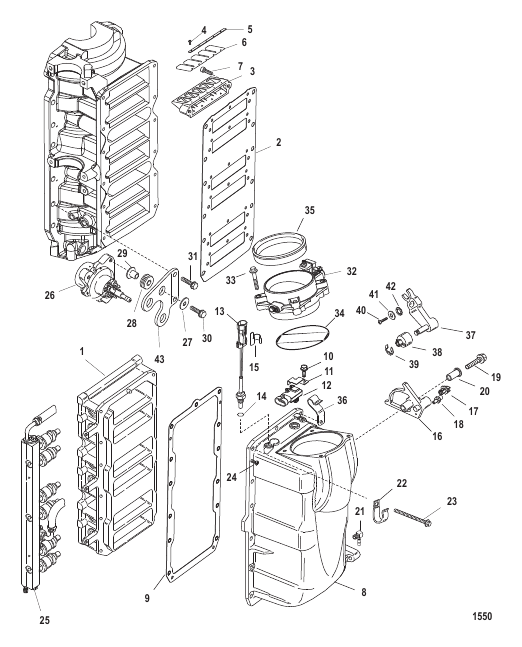

AIR HANDLER ASSEMBLY
|
1 |
superseded
|
| - |
832933A01 |
GASKET SET Powerhead
|
1 |
|
| - |
840756A03 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
840366A5 |
PLATE ASSEMBLY Intake
|
1 |
disc.
|
| 10 |
1993716 |
SCREW (M6 x 16)
|
1 |
|
| 11 |
884522 |
BRACKET MAP Sensor
|
1 |
|
| 12 |
854445 |
SENSOR MAP
|
1 |
|
| 13 |
889575 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 14 |
627021 |
O-RING (.301 x .070)
|
1 |
|
| 15 |
840512 |
CLIP
|
1 |
disc.
|
| 16 |
840546T4 |
CAM ASSEMBLY
|
1 |
disc.
|
| 17 |
932481 |
BUSHING Swivel
|
1 |
superseded
|
| 18 |
8235694 |
BALL Threaded
|
1 |
|
| 19 |
40011154 |
SCREW (M8 x 50) Stainless Steel
|
1 |
|
| 2 |
8046801 |
GASKET
|
1 |
|
| 20 |
856895 |
BUSHING
|
1 |
|
| 21 |
993211 |
FITTING
|
1 |
|
| 22 |
65292 |
J CLIP
|
2 |
superseded
|
| 23 |
84044875 |
SCREW (M6 x 75)
|
12 |
disc.
|
| 24 |
4001987 |
SCREW (M4 x 16)
|
2 |
|
| 25 |
840405T1 |
FUEL RAIL
|
1 |
disc.
|
| 26 |
857149T2 |
PUMP ASSEMBLY Oil Oil
|
1 |
superseded
|
| 27 |
4002318 |
WASHER 8.90 x 24.0x 2.4 PL SS
|
3 |
|
| 28 |
855362 |
GROMMET
|
3 |
superseded
|
| 29 |
855364 |
BUSHING
|
3 |
|
| 3 |
840418T2 |
REED BLOCK ASSEMBLY
|
6 |
superseded
|
| 30 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 31 |
81893440 |
SCREW (M8 x 40)
|
2 |
|
| 32 |
855425A4 |
THROTTLE BODY KIT
|
1 |
superseded
|
| 33 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 34 |
855426 |
O-RING
|
1 |
|
| 35 |
8533511 |
GROMMET
|
1 |
|
| 36 |
840449 |
CLIP
|
1 |
disc.
|
| 37 |
8588511 |
LEVER ASSEMBLY Throttle
|
1 |
disc.
|
| 38 |
840968 |
ROLLER
|
1 |
superseded
|
| 39 |
8237951 |
RING Retaining
|
1 |
|
| 4 |
849038 |
SCREW (M3 x 5) (M3 x 5)
|
60 |
|
| 40 |
40056107 |
SCREW (M5 x 16)
|
1 |
|
| 41 |
89302 |
WASHER (.203 x .406 x .040)
|
1 |
|
| 42 |
69432 |
LOCKWASHER External (#10)
|
1 |
|
| 43 |
840506T |
BRACKET
|
1 |
disc.
|
| 5 |
840447 |
REED PLATE
|
12 |
|
| 6 |
840445A3 |
REED PETAL KIT
|
1 |
superseded
|
| 7 |
8555252 |
SCREW (M6)
|
12 |
|
| 8 |
858539A3 |
PLENUM KIT Air
|
1 |
|
| 9 |
8046791 |
GASKET
|
1 |
superseded
|
