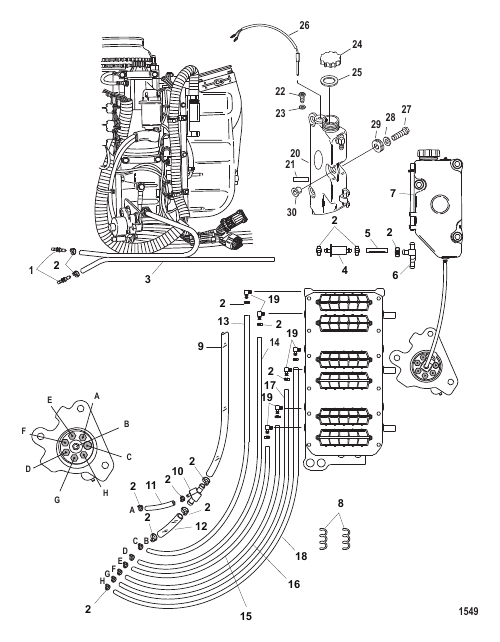

Oiling System
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 10 | 840399 |
Y-ОБРАЗНЫЙ ФИТИНГ Y-FITTING |
1 | discontinued |
| 11 | 85583463 |
ТРУБОПРОВОД (Общая длина 33.00") Cut to 3-1/2 Inches TUBING (33.00 Inches Bulk) Cut to 3-1/2 Inches |
1 | superseded |
| 12 | 897131 |
РУКАВ (2.75") Cut to 2-3/4 Inches HOSE (2.75 Inches) Cut to 2-3/4 Inches |
1 | discontinued |
| 13 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 18-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 18-1/2 Inches |
1 | superseded |
| 14 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 24-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 24-1/2 Inches |
1 | superseded |
| 15 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 14 Inches TUBING (38.00 Inches Bulk) Cut to 14 Inches |
1 | superseded |
| 16 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 16 Inches TUBING (38.00 Inches Bulk) Cut to 16 Inches |
1 | superseded |
| 17 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 26 Inches TUBING (38.00 Inches Bulk) Cut to 26 Inches |
1 | superseded |
| 18 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") Cut to 20-1/2 Inches TUBING (38.00 Inches Bulk) Cut to 20-1/2 Inches |
1 | superseded |
| 19 | 858870 |
ОБРАТНЫЙ КЛАПАН (90 Degrees) CHECK VALVE (90 Degrees) |
6 | |
| 2 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 2 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 20 | 830889A4 |
БАК В СБОРЕ Oil TANK ASSEMBLY Oil |
1 | superseded |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Reservoir NOT SOLD SEPARATE Decal-Reservoir |
1 | |
| 22 | 58376 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
1 | |
| 23 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 24 | 814449A3 |
КОЛПАЧОК В СБОРЕ CAP ASSEMBLY |
1 | |
| 25 | 42999 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 26 | 856156A2 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Low Oil SWITCH ASSEMBLY Low Oil |
1 | superseded |
| 27 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
3 | |
| 28 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
3 | |
| 29 | 855362 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0T997973] & Below GROMMET [0T997973] & Below |
3 | superseded |
| 29 | 855362001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0T997974] & Up GROMMET [0T997974] & Up |
3 | |
| 3 | 875289 |
РУКАВ HOSE |
1 | |
| 30 | 855364 |
ВТУЛКА BUSHING |
3 | |
| 4 | 875284001 |
ФИЛЬТР Масляный – проходной FILTER Oil - In Line |
1 | superseded |
| 5 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 6 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 7 | 830756109 |
РУКАВ (Общая длина 57.00") Cut to 7 Inches HOSE (57.00 Inches Bulk) Cut to 7 Inches |
1 | superseded |
| 8 | 859230 |
ФИКСАТОР RETAINER |
2 | superseded |
| 9 | 82381455 |
ТРУБОПРОВОД (Общая длина 25.00") Cut to 15-1/2 Inches TUBING (25.00 Inches Bulk) Cut to 15-1/2 Inches |
1 |
