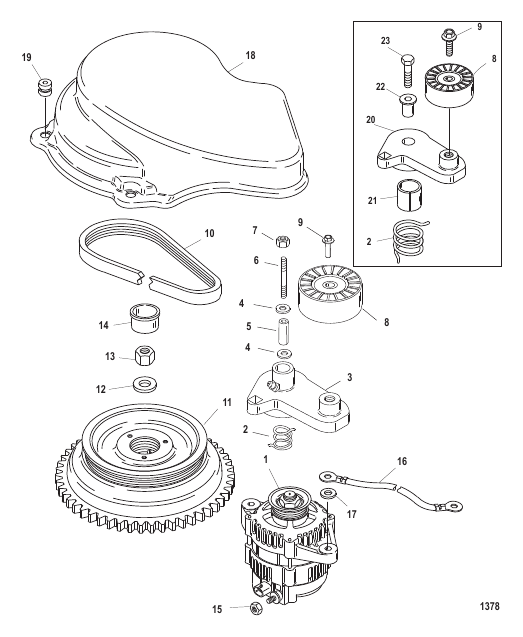

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
881247A1 |
ALTERNATOR
|
1 |
superseded
|
| 10 |
82850711 |
BELT
|
1 |
superseded
|
| 11 |
859619T2 |
FLYWHEEL
|
1 |
|
| 12 |
68229 |
WASHER (.641 x 1.250 x .190)
|
1 |
superseded
|
| 13 |
42979 |
NUT (M16)
|
1 |
|
| 14 |
45907 |
PLUG Yellow (Use where Applicable)
|
1 |
|
| 15 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 16 |
856583A5 |
CABLE ASSEMBLY (6-1/4 Inches)
|
1 |
|
| 16 |
856583A4 |
CABLE ASSEMBLY (7-1/4 Inches)
|
1 |
|
| 17 |
4002319 |
WASHER
|
1 |
|
| 18 |
840494A2 |
COVER Flywheel
|
1 |
superseded
|
| 19 |
840525 |
GROMMET
|
4 |
disc.
|
| 2 |
842705 |
SPRING
|
1 |
|
| 20 |
850291T3 |
BELT TENSIONER [0T651944] & Below
|
1 |
|
| 21 |
42139 |
BUSHING [0T651944] & Below
|
1 |
|
| 22 |
8525622 |
BUSHING [0T651944] & Below
|
1 |
disc.
|
| 23 |
4007180 |
SCREW (M10 x 45) [0T651944] & Below
|
1 |
|
| 3 |
856815T2 |
ARM TENSIONER ASSEMBLY [0T651945] & Up
|
1 |
|
| 4 |
4002320 |
WASHER [0T651945] & Up
|
2 |
|
| 5 |
8568941 |
BUSHING [0T651945] & Up
|
1 |
|
| 6 |
856900 |
STUD (M10 x 85) [0T651945] & Up
|
1 |
superseded
|
| 7 |
826292 |
NUT (M10) Brass/Nickel Plated [0T651945] & Up
|
1 |
|
| 8 |
852385A2 |
PULLEY ASSEMBLY
|
1 |
superseded
|
| 9 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
1 |
|
